Analog Bandwidth6GHz Analog Channels4 Real-time Sample Rate20GSa/s Maximum memory depth2Gpts(opt.) Highest waveform capture rate1,000,000 wfms/s Digital Channel16(Probe opt.)
Analog Bandwidth 6GHz | Analog Channels 4 | Real-time Sample Rate 20GSa/s |
Maximum memory depth 2Gpts(opt.) | Highest waveform capture rate 1,000,000 wfms/s | Digital Channel 16(Probe opt.) |

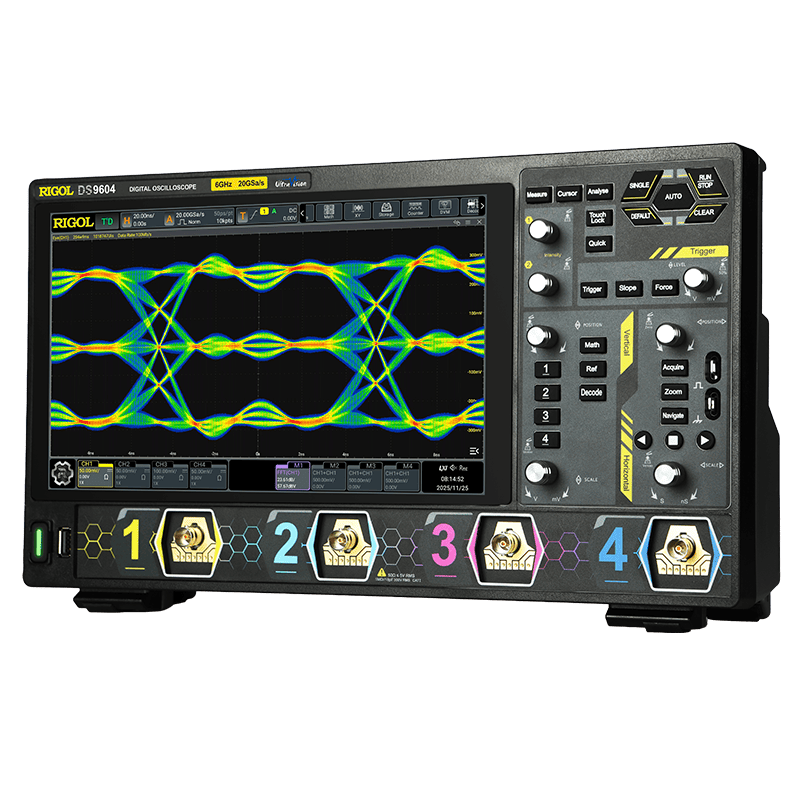

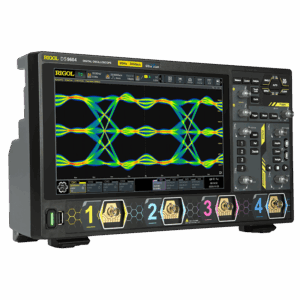

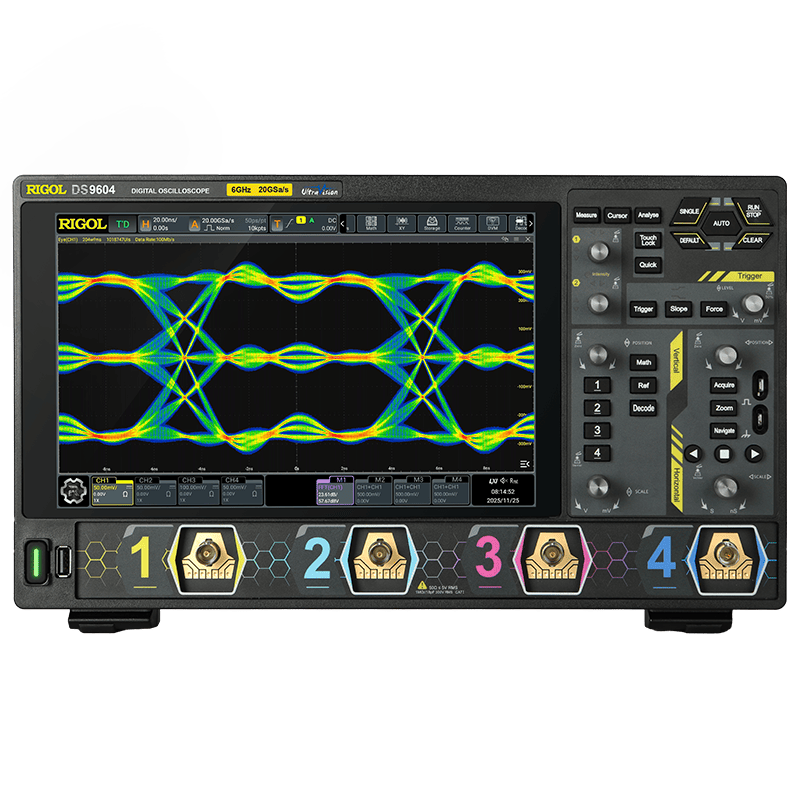

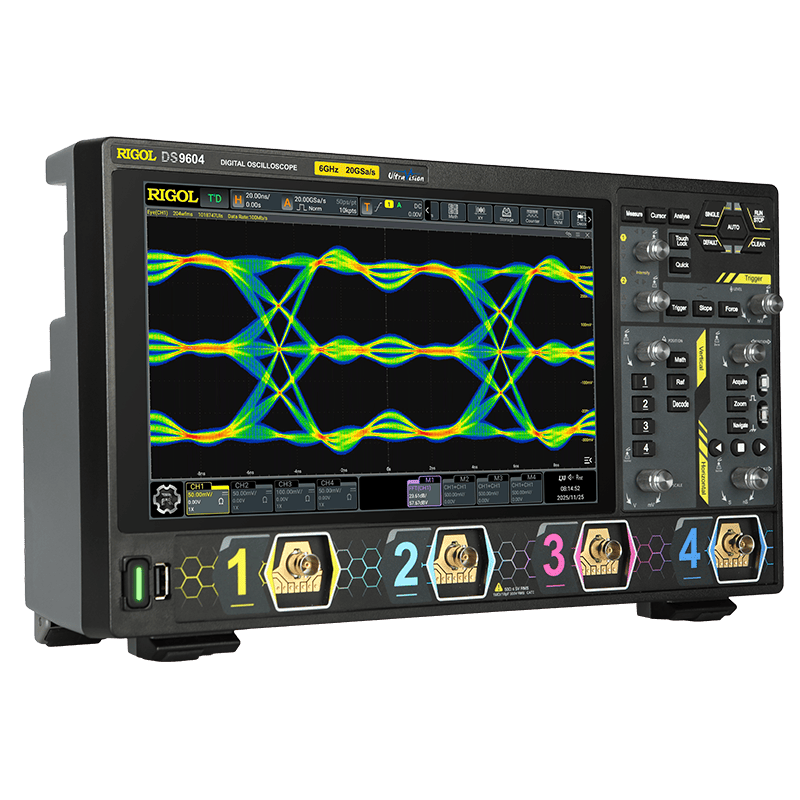

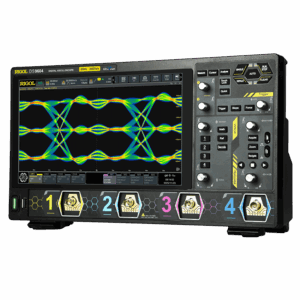

Explore the MSO/DS9000 Series High Resolution Digital Oscilloscopes
6GHz Pure & Lossless
With up to 6 GHz bandwidth and 20 GSa/s real-time sampling rate, the DS/MSO9000 Series is built for high-speed signal capture, edge analysis, and complex anomaly detection.
Solid Electronic Attenuator, Built to Last
By replacing traditional mechanical attenuators with a Solid Electronic Attenuator, the DS/MSO9000 Series delivers improved lifetime and reliability in high-frequency, high-duty-cycle range switching applications.

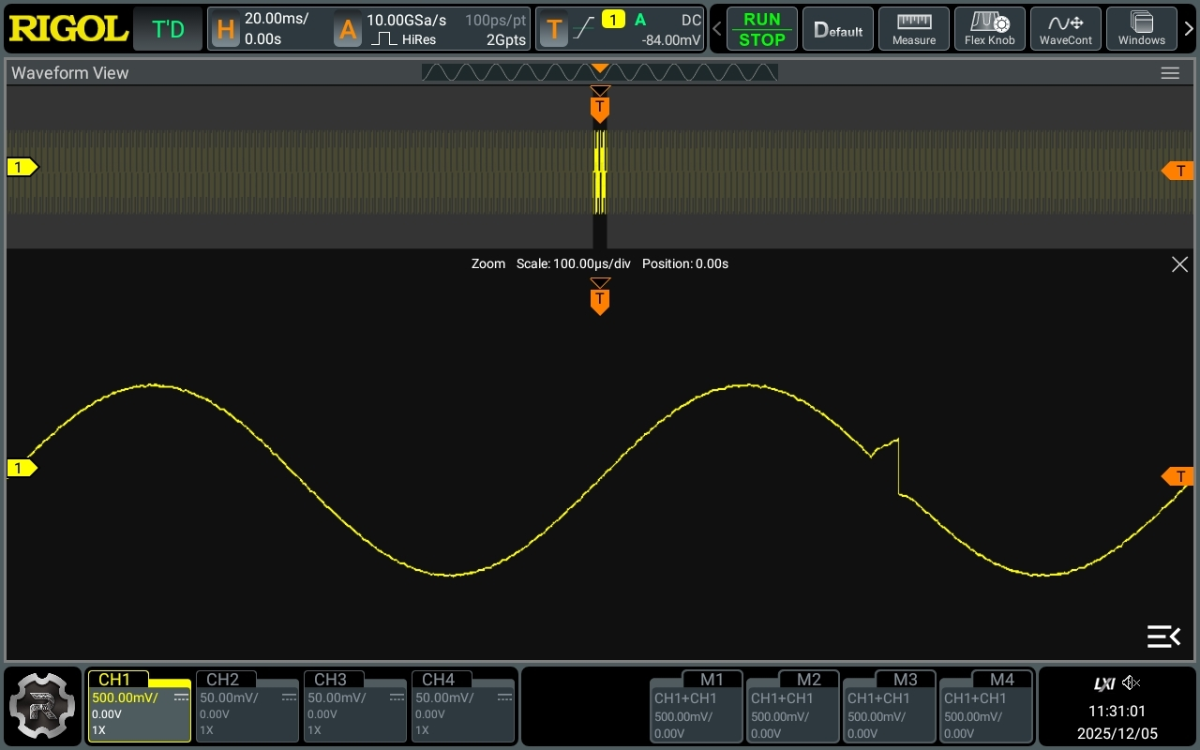

Deep Memory, Zero Misses
With up to 2 Gpts memory depth and a waveform capture rate of up to 1,000,000 wfms/s,
the DS/MSO9000 Series helps engineers detect intermittent events faster and improve debugging efficiency.

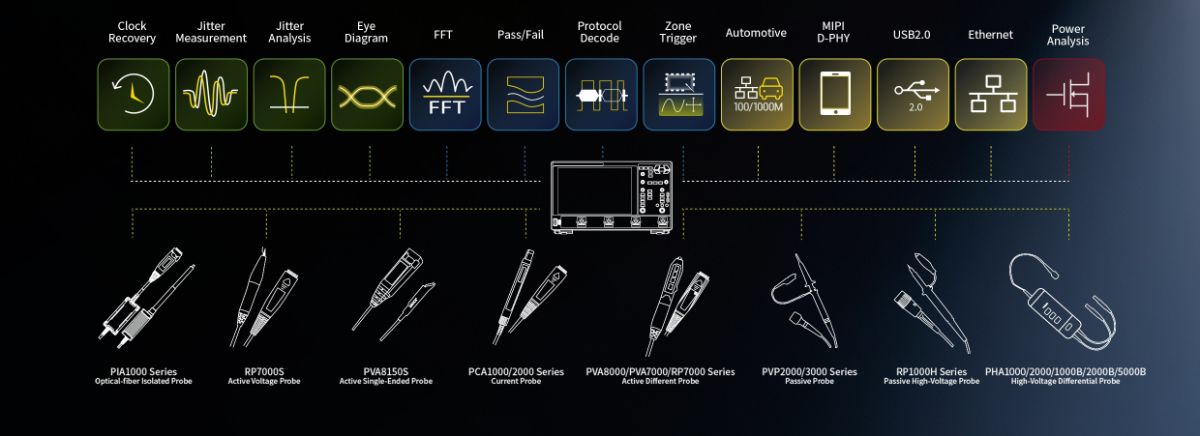

Advanced Analysis in One

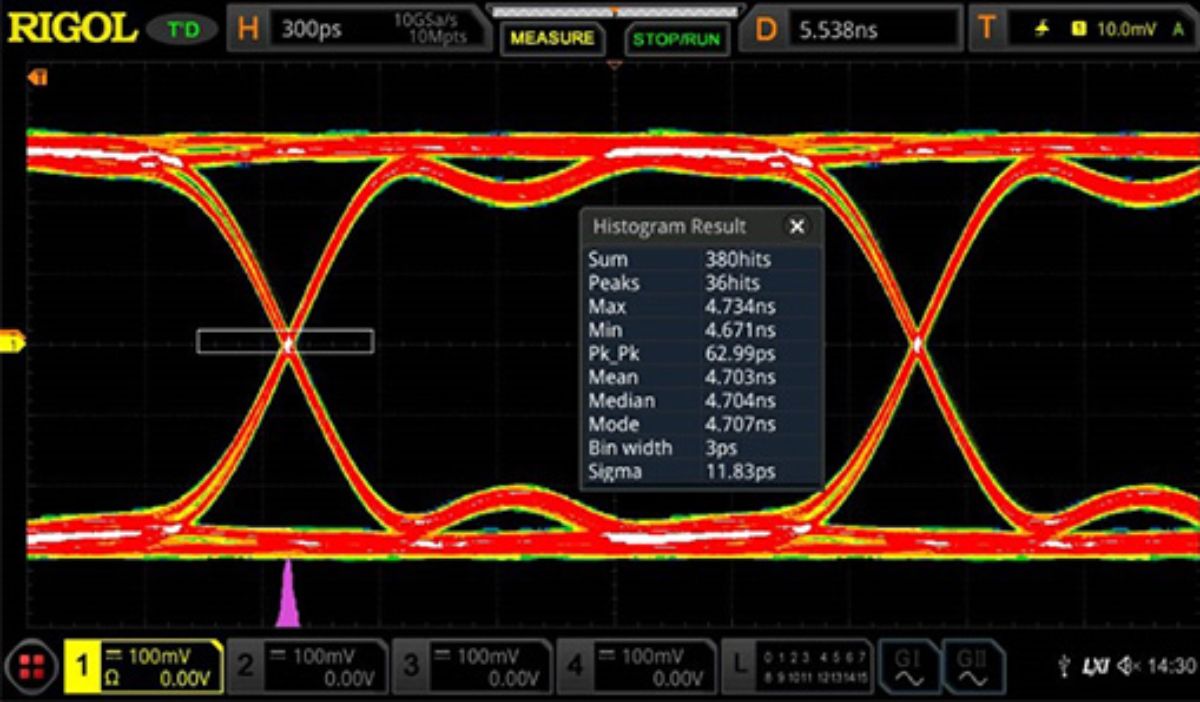

Built-in tools such as eye diagram analysis, jitter decomposition, compliance testing, and power analysis enable users to move quickly from waveform observation to deeper insight.

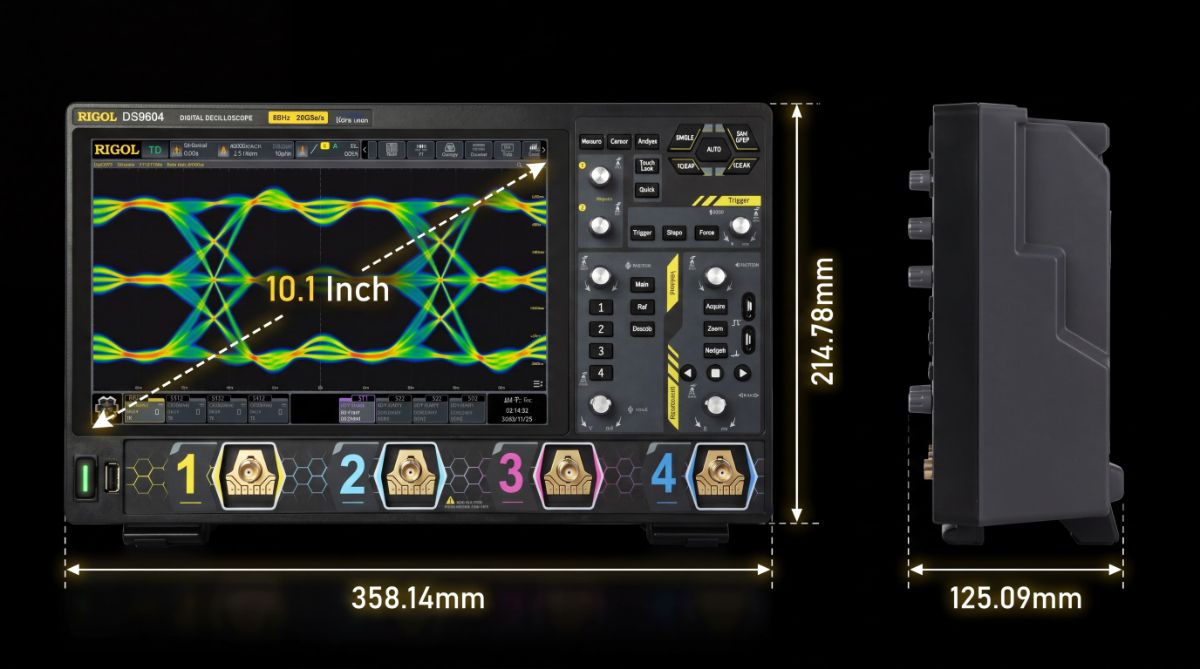

Compact & Portable
Highly integrated and weighing only 5kg+, the DS/MSO9000 Series is suitable for both efficient lab testing and portable field deployment.
