MSO/DS7000 Series Digital Oscilloscope
MSO7000/DS7000 series (MSO7054, MSO7034, MSO7024, MSO7014, DS7054, DS7034, DS7024, DS7014) is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 7 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio, extremely high memory depth, clear display, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional&accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
Features
7 instruments in 1
Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Long Record Length (100M std/500M opt)
Find elusive problems in complex digital streams with long acquisitions at high sample rates.
Flexible user interface combining touch, mouse, knob/button, web, and remote control
With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.

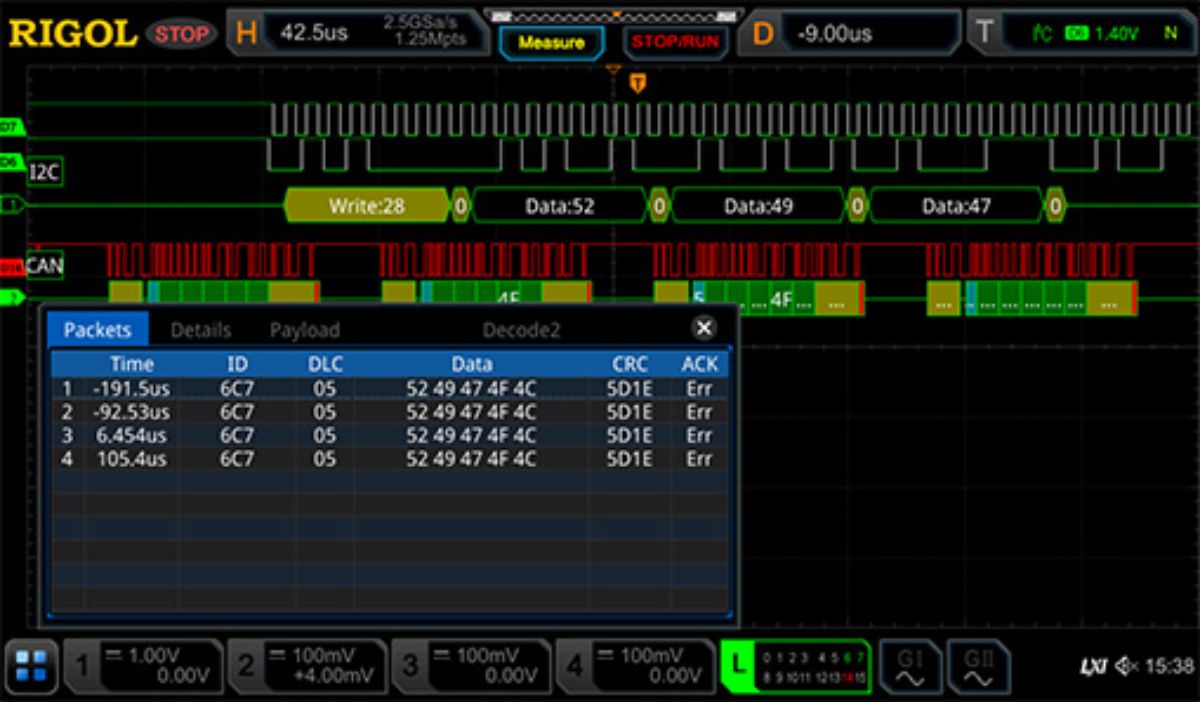

Protocol Analysis for today’s common serial communication buses
Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

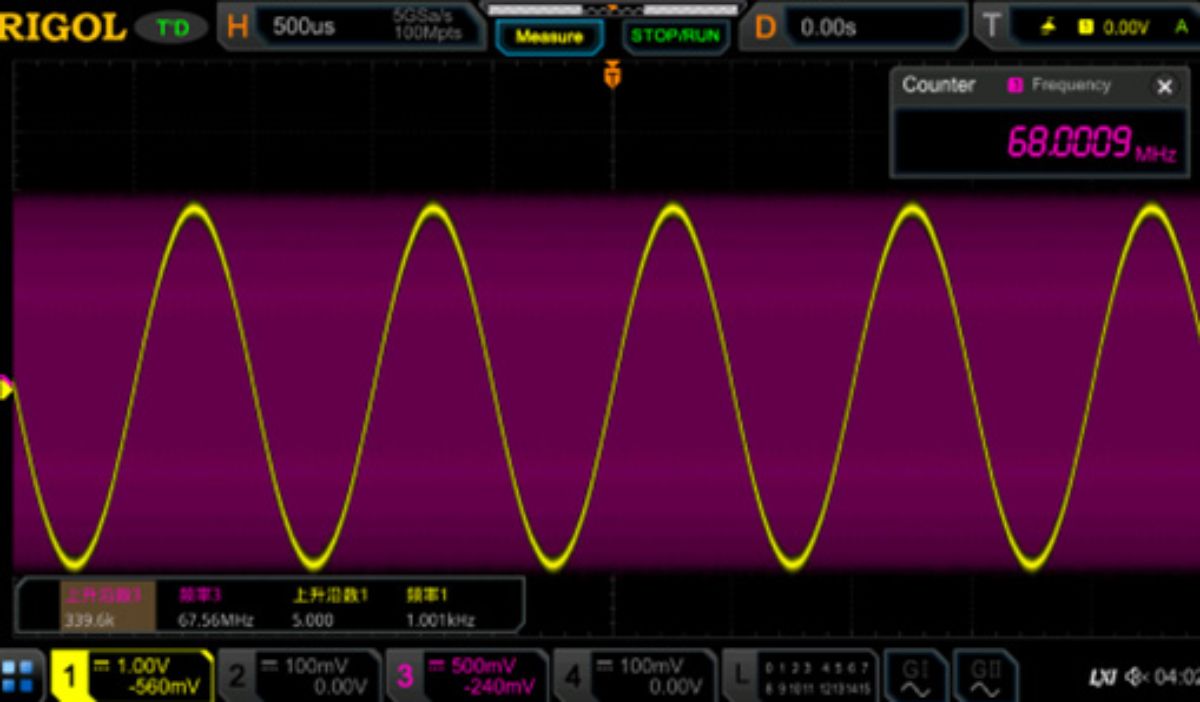

Full Memory Hardware Measurement
No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.
Over 600K wfms/s Waveform Capture rate
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Enhanced Color FFT
The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.
