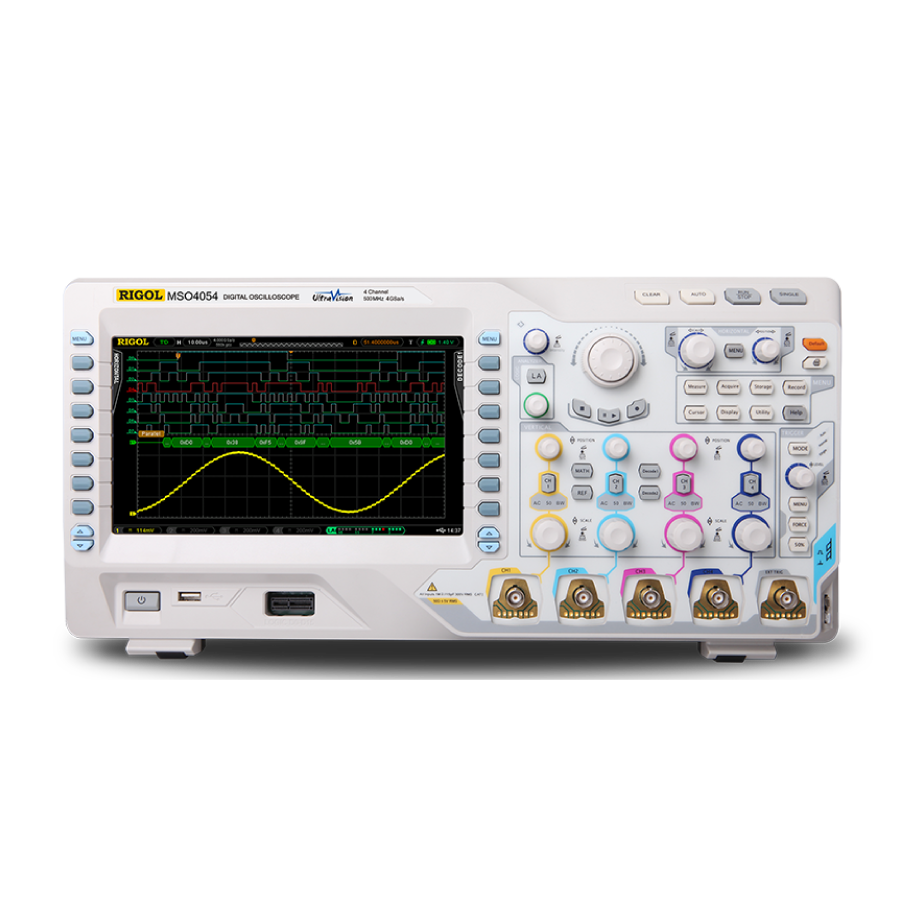

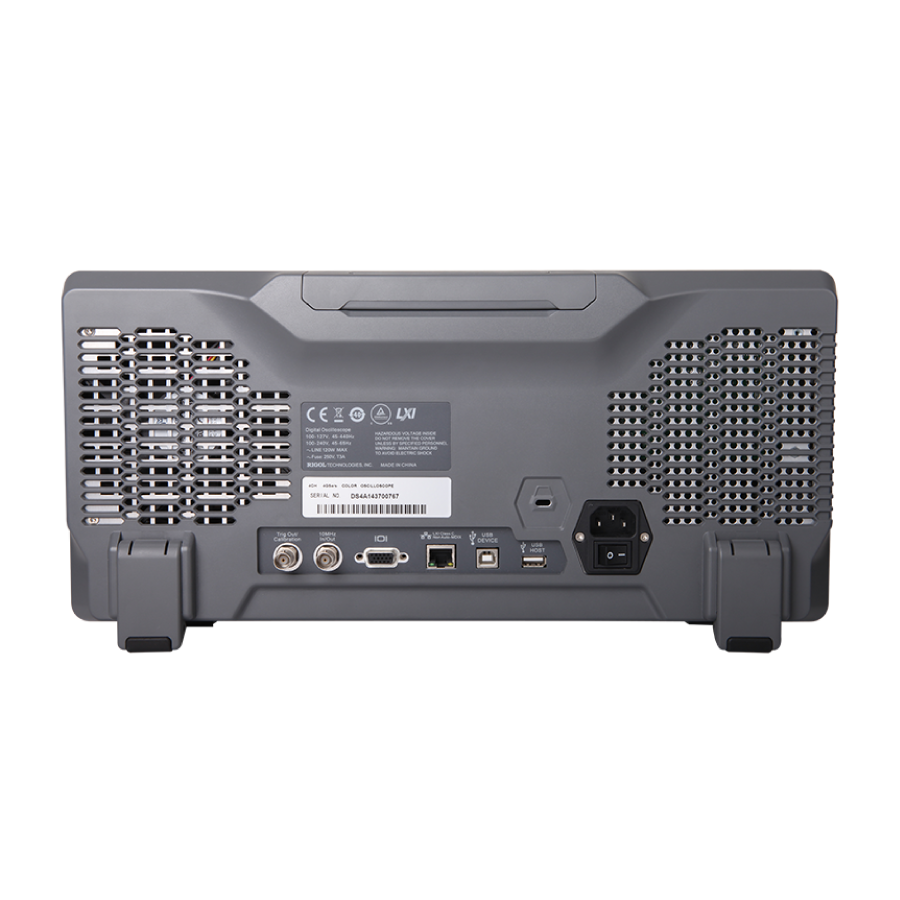

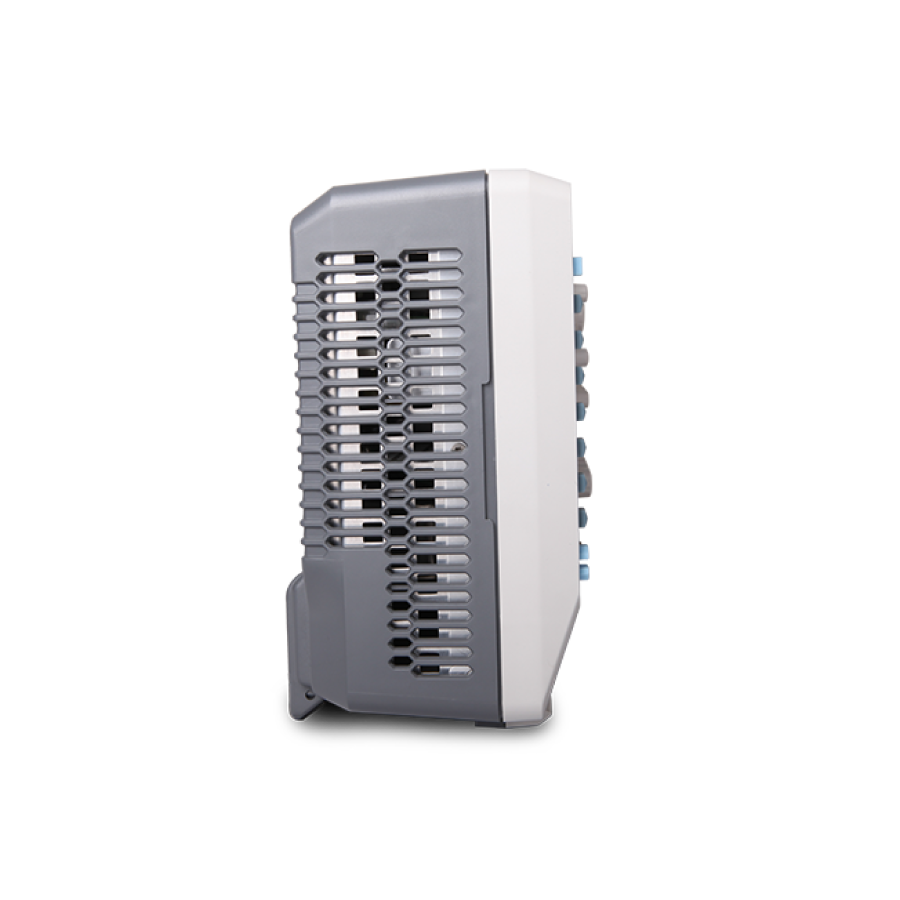

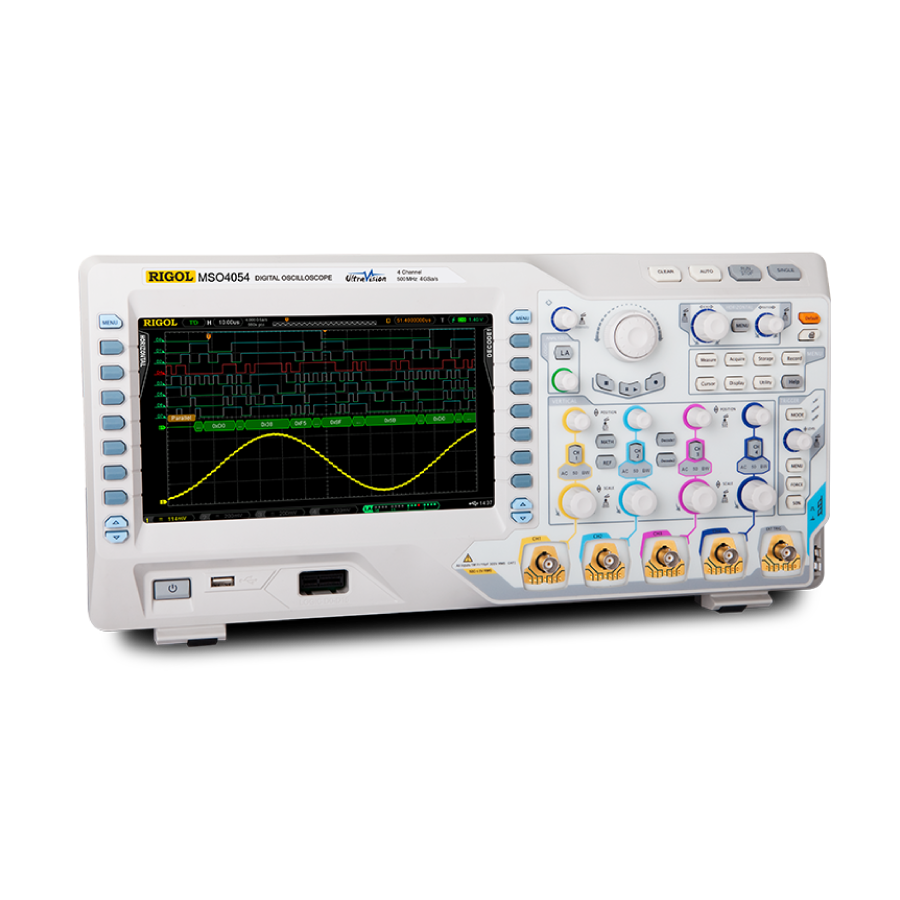

MSO/DS4000 Series Digital Oscilloscope
The MSO/DS4000 series (DS4054, DS4052, DS4034, DS4032, DS4024, DS4022, DS4014, DS4012, MSO4054, MSO4052, MSO4034, MSO4032, MSO4024, MSO4022, MSO4014, MSO4012) digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s, 2 or 4 analog channels, and 16 digital logic channels, the 4000 is ideal for a wide variety of engineers working in communications, industrial electronics, R&D and educational fields.
Features
Up to 110,000 wfms/s Waveform Capture rate
Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.
140Mpts Standard Record Length
Long acquisitions at high sample rates help debug elusive problems in complex digital streams.
Intensity Color graded display
With RIGOL’s advanced color graded display engineers can visualize signal anomalies in an intensity color grading even when overlapping with other signals artifacts in the current trigger mode.
200,000-frame waveform recording, preview and analysis
The real-time recording function record up to 200,000 frames of waveforms, and the dedicated data analysis navigation knob makes possible to quickly view the recorded content, conveniently play back, analyze and compare the waveforms to find out the fault.
Serial bus triggering and decoding
Comes with I2C, SPI, RS232, CAN/LIN, Flexray trigger function, add options to support the above bus decoding as standard offer.
Mixed signal analysis capability
The MSO model with 16 digital logic channels works for easier simultaneous testing of multiple analog and digital signals for easier digital logic and mixed-signal analysis.
Standard waveform template test function
Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.
