DS70000 Series Digital Oscilloscope
The DS70000 Series (DS70304, DS70504) is available in either 3 or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology into RIGOL’s most powerful test and measurement instrument ever.
Features
Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz
Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate
Waveform Capture Rate

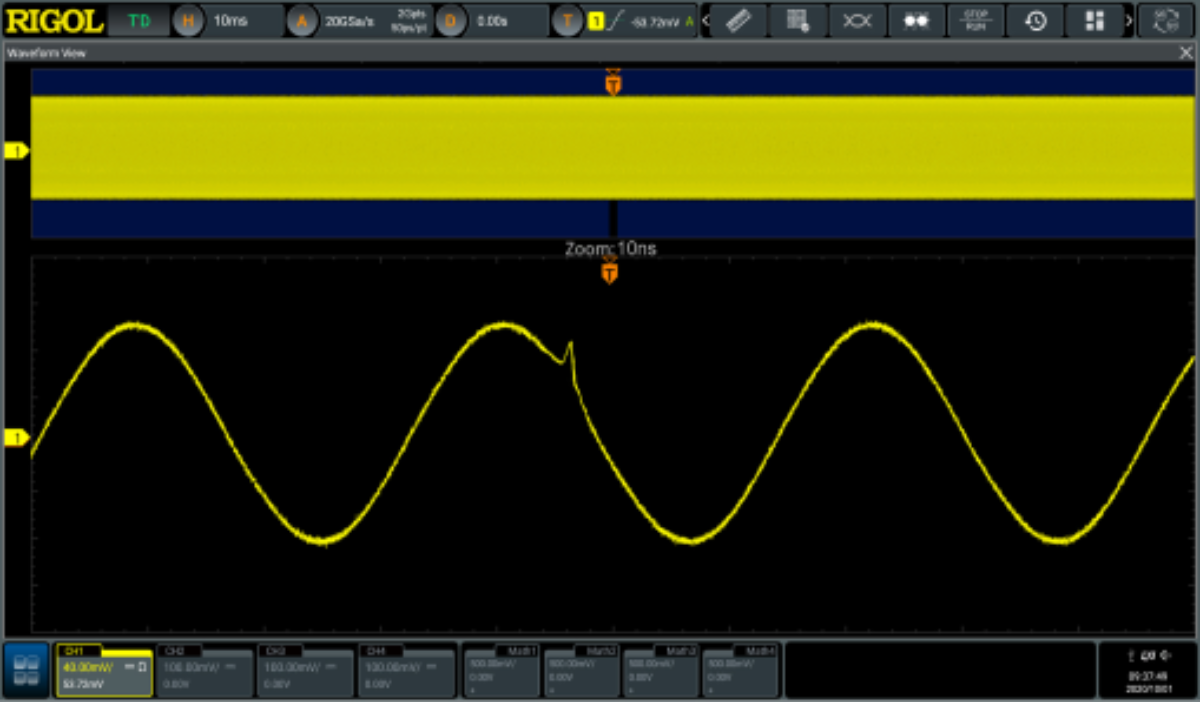

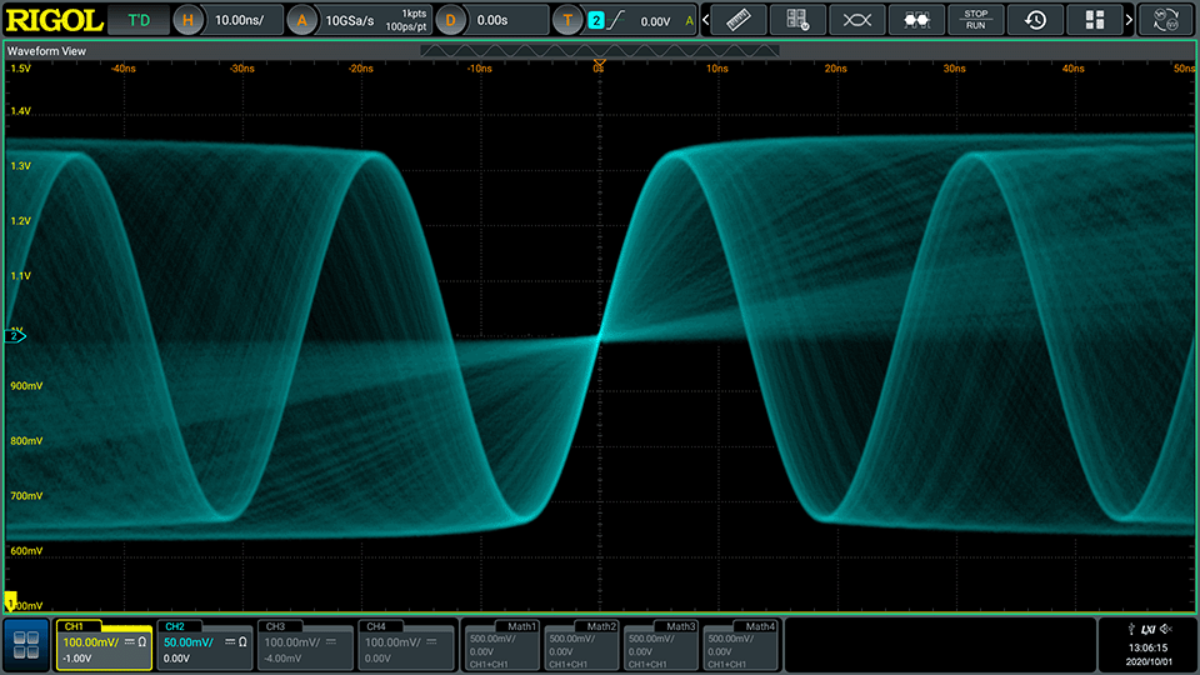

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory
500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution

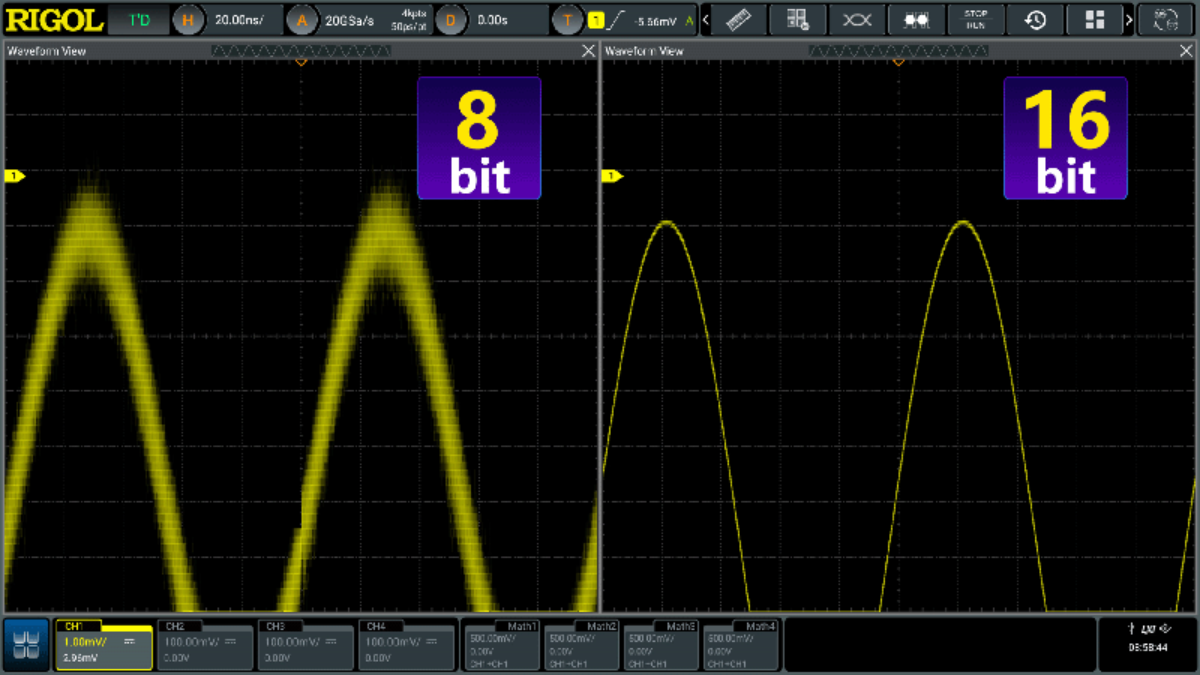

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
Multiple Touchscreens for efficient visualization

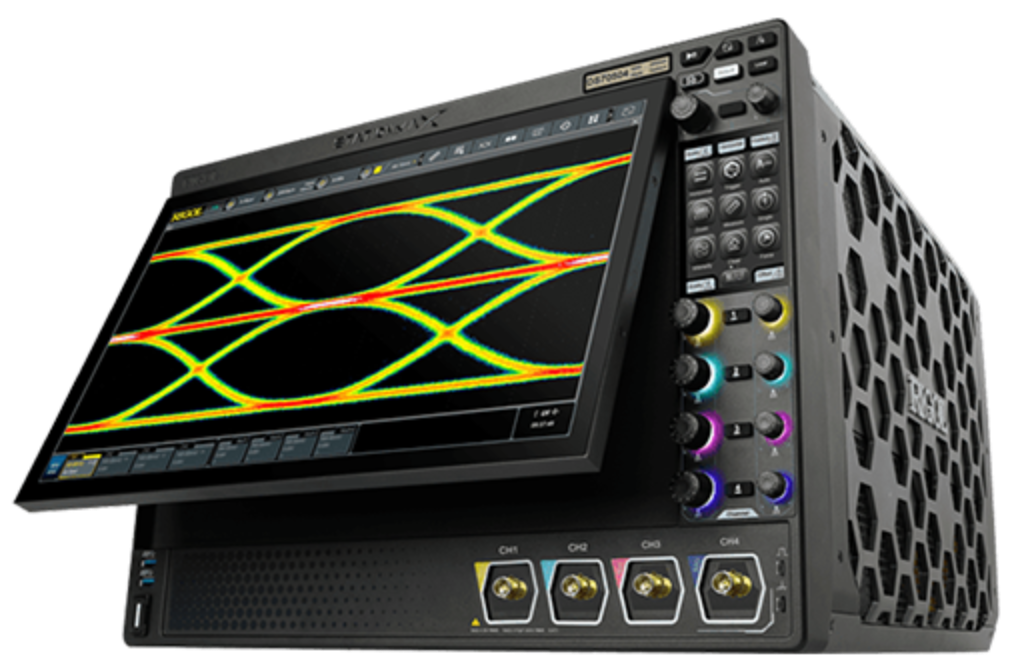

15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface
Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar
