DHO4000 Series Digital Oscilloscope
The DHO4000 series (DHO4204 , DHO4404 , DHO4804) digital oscilloscope is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Adopting the brand-new chipset “Centaurus” developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.
An oscilloscope in an important tool for making power supply measurements. With up to 12-bit vertical resolution, the DHO 4000 series make it easy for you to perform ripple measurements and quality test.

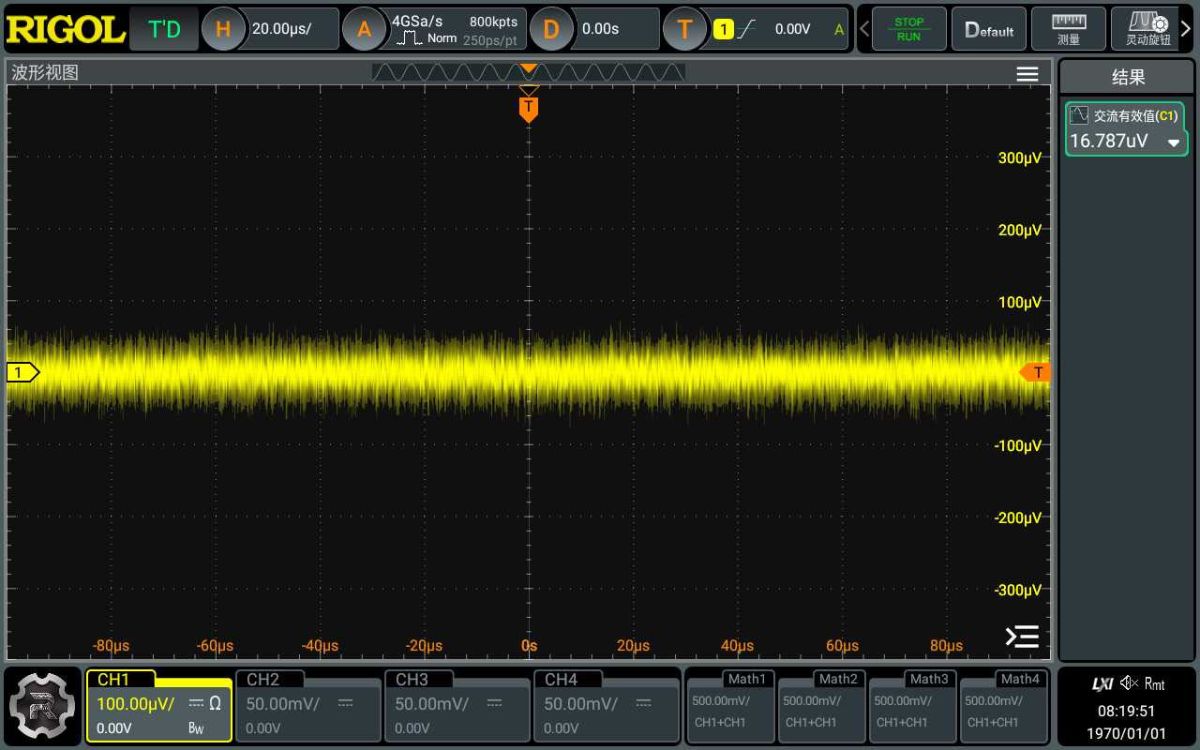

Industry-leading, low noise floor
18uVrms ultra-low noise floor (typical), cleaner signal.

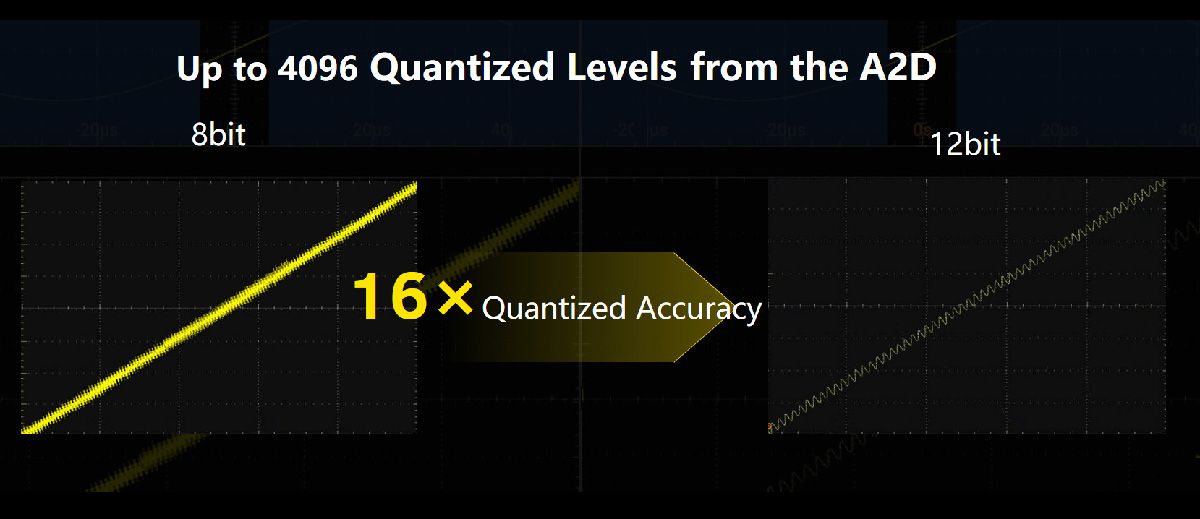

High-resolution 12-bit
All DHO4000 series oscilloscopes are equipped with Rigol’s second generation “Centaurus” chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors’ 8-bit counterparts.

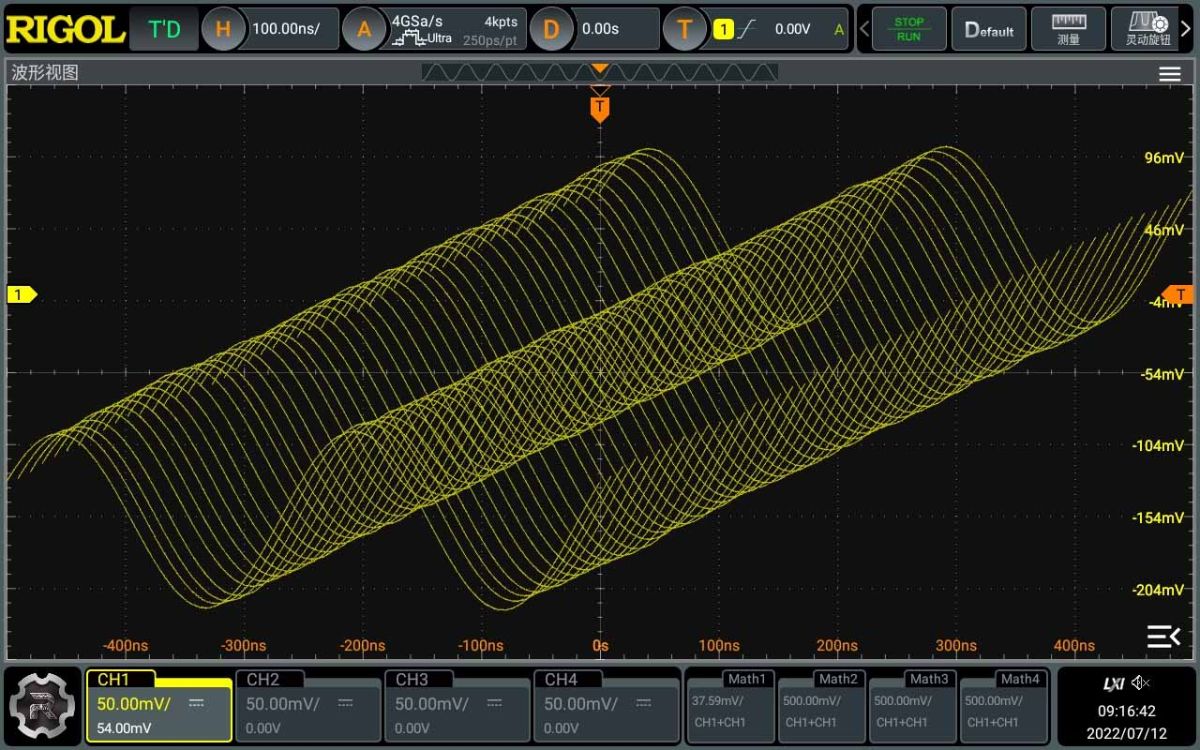

UltraAcquire mode
Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.
10.1″ HD touch panel
Rigol’s new UI and 10.1″ HD touch panel, supporting engineers with high efficiency

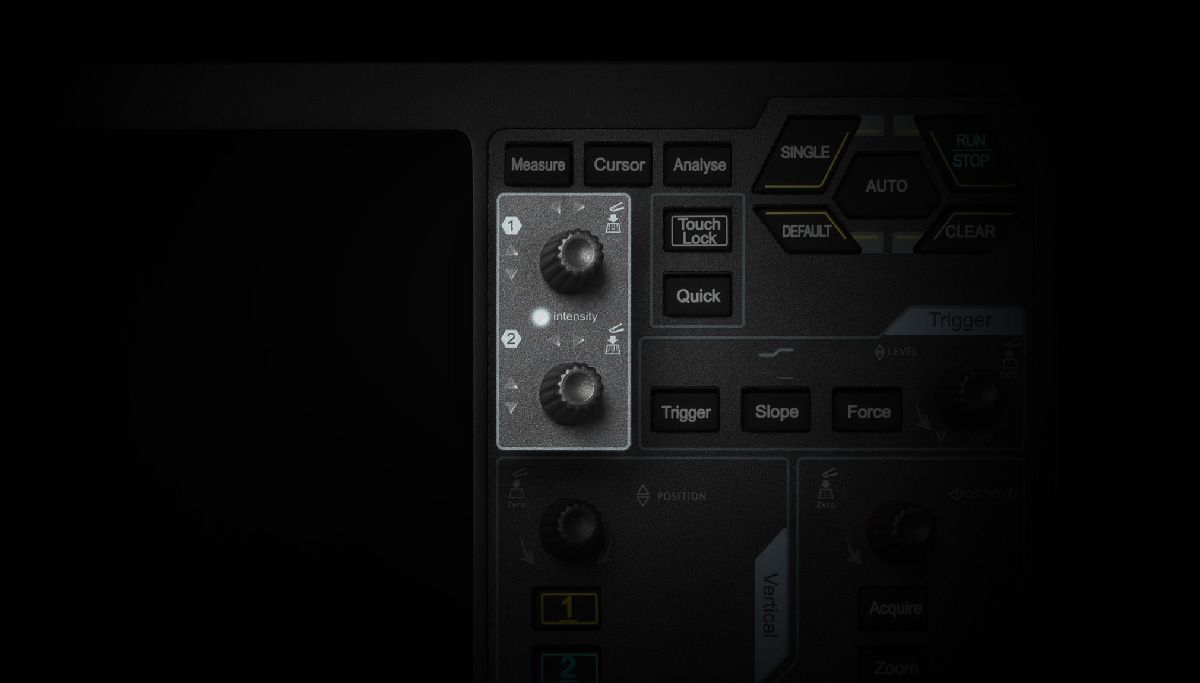

Flex knob button
The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.
