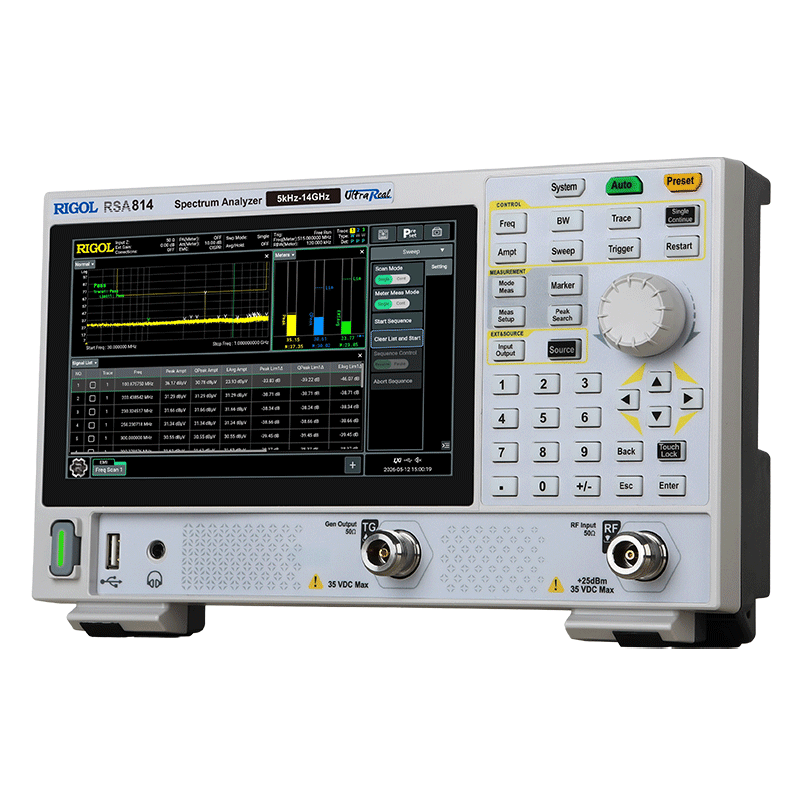

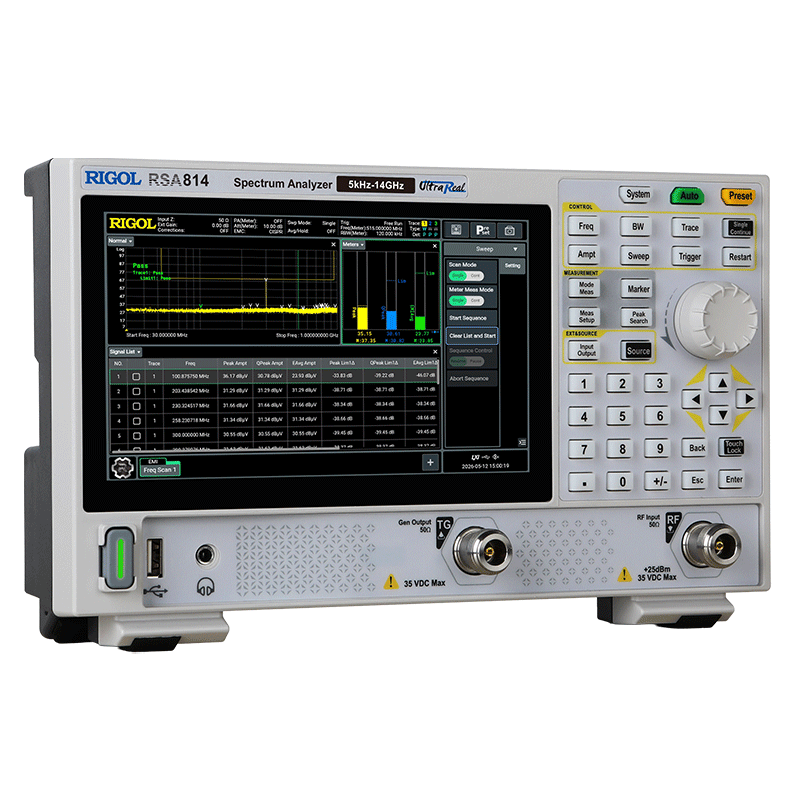

Explore the RSA800 Series Spectrum Analyzer
Compact Size. Powerful Performance.

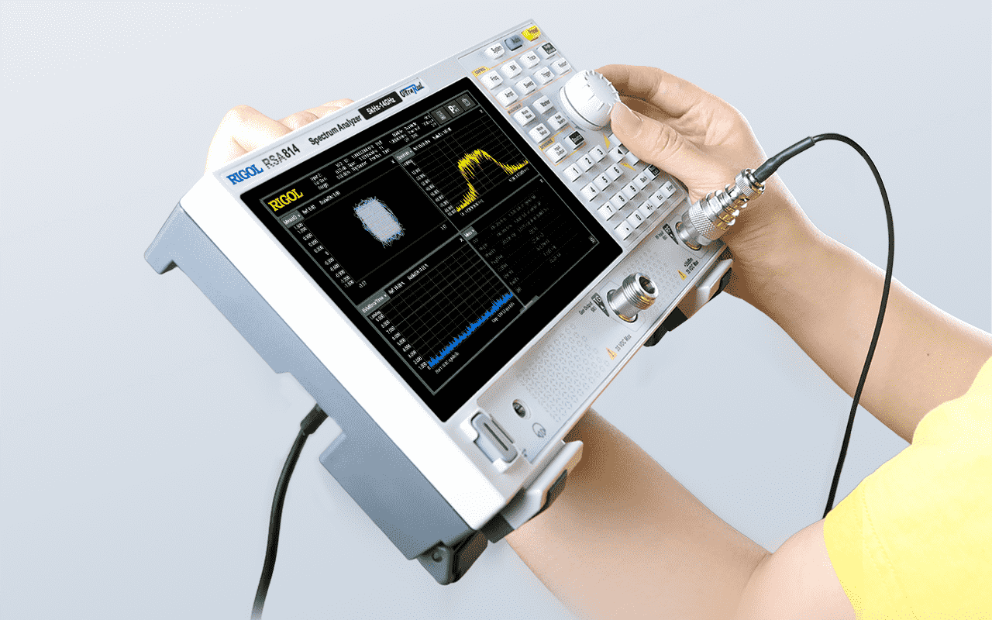

Every model weighs just 4.2 lb and fits easily into the RIGOL Ultra-Portable Instrument Bag, so you can take RF measurements wherever the job takes you.

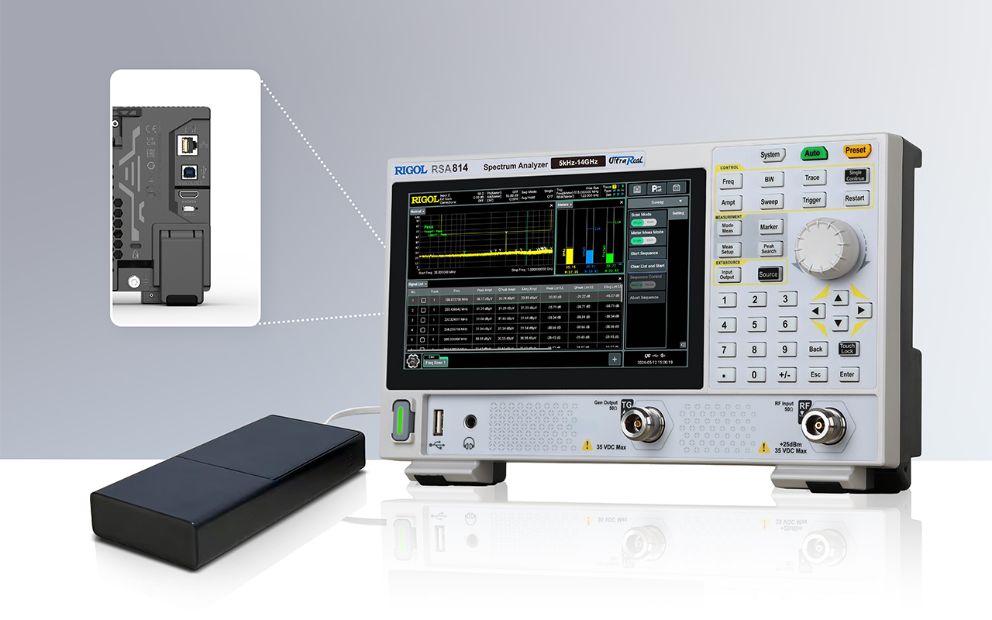

Standard USB Type-C Power Delivery
The USB-C port supports widely used USB PD protocols. Pair the instrument with a compatible power bank to stay powered during travel, remote work, and field testing.

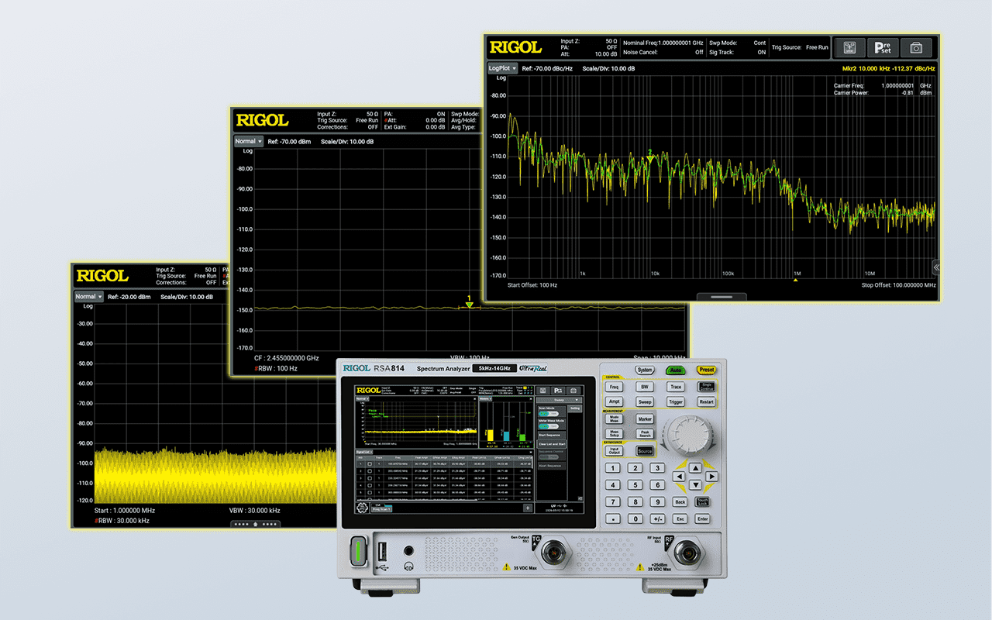

Professional RF Performance for Demanding Measurements
Frequency Coverage: 5 kHz to 4.5 / 8.5 / 14 GHz
Phase Noise: -112 dBc/Hz @ 1 GHz, 10 kHz offset (typ.)
Real-Time Spectrum Analysis for Transient Signal Capture
40 MHz Real-Time Spectrum Analysis: Capture multiple signals and intermittent interference in complex RF environments.
40 MHz Vector Signal Analysis Bandwidth: Perform in-depth analysis and performance evaluation of broadband communication signals.
Premium Features, Now Standard.

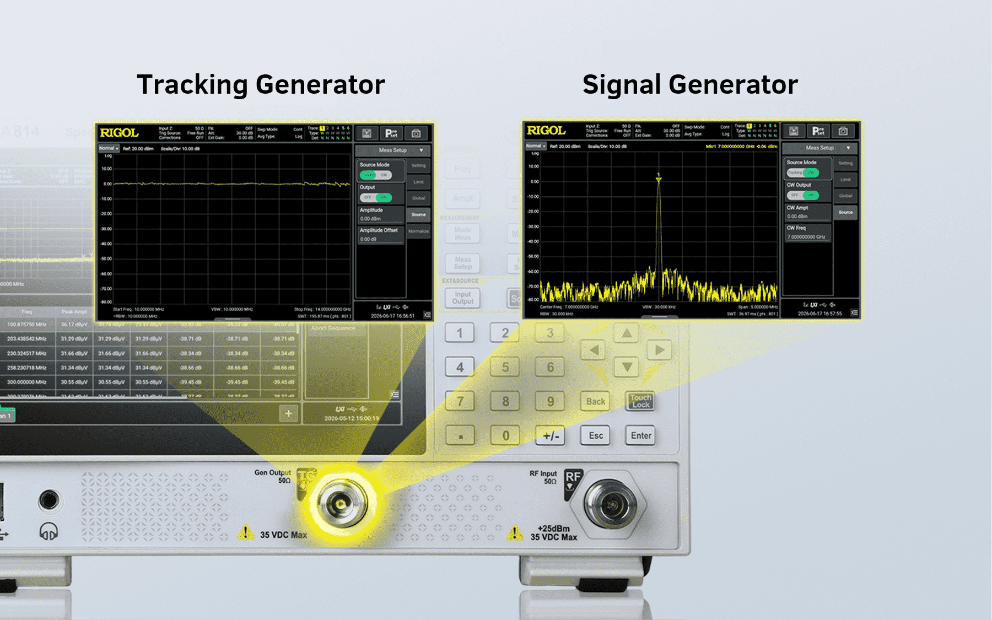

Key capabilities come standard on the RSA800 Series, including a built-in preamplifier and 40 MHz real-time bandwidth. The integrated tracking generator can also operate as an independent signal source.

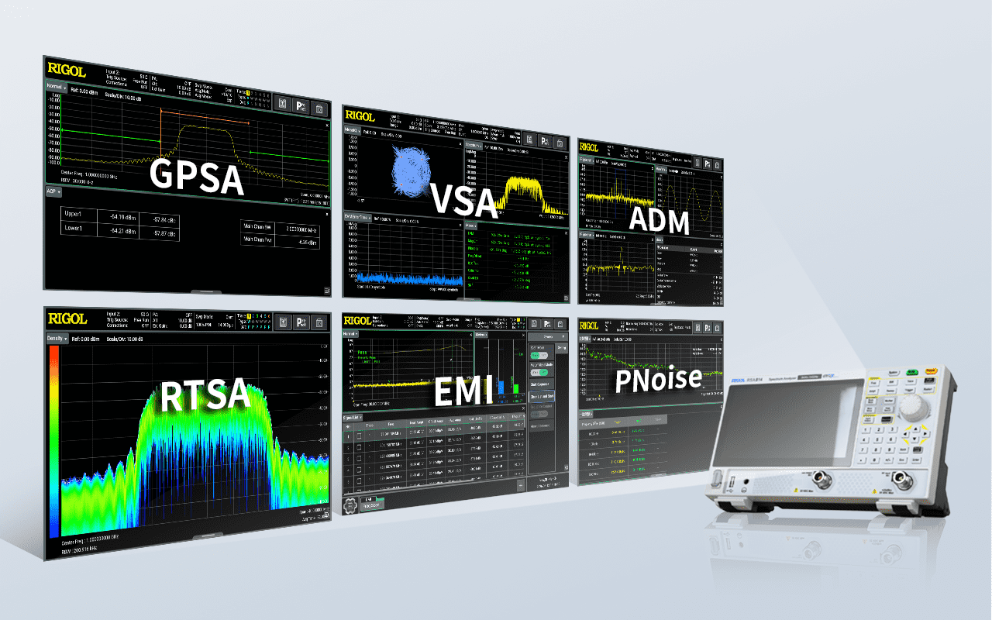

Comprehensive Measurement Applications
The RSA800 integrates essential RF measurement capabilities and offers software options that expand functionality as your testing needs evolve.

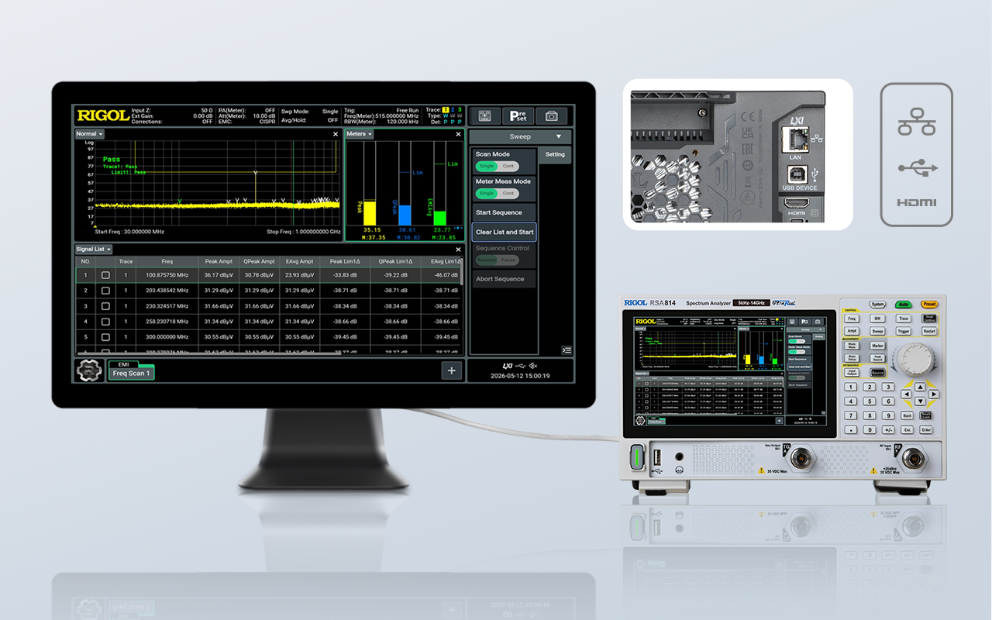

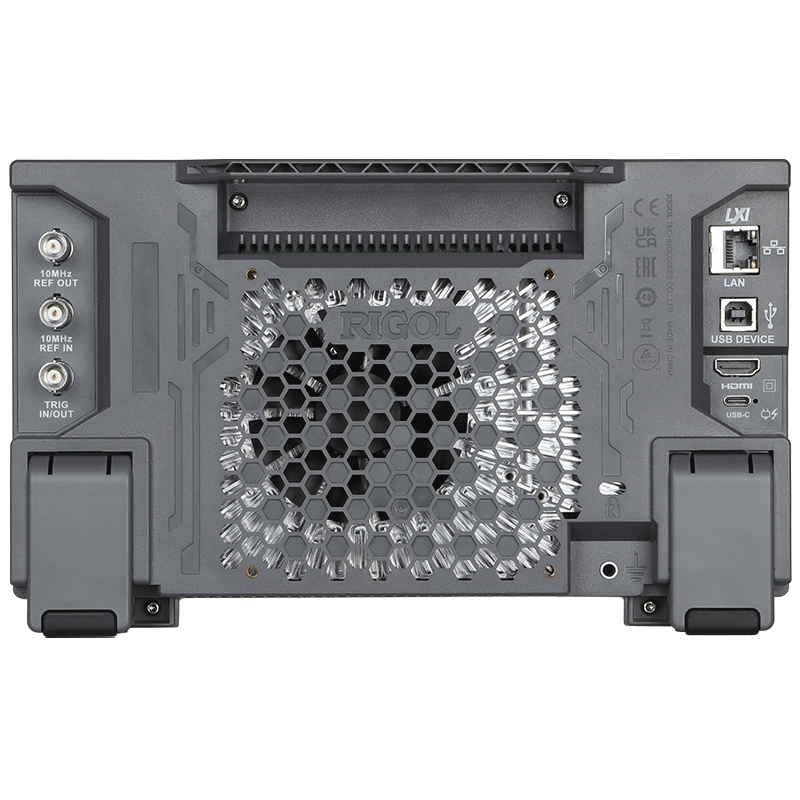

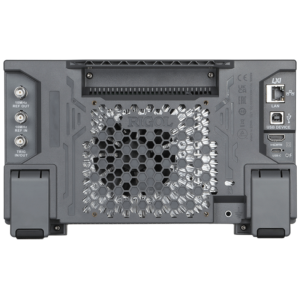

Standard USB, LAN and HDMI Connectivity
USB and LAN interfaces provide remote instrument control with support for standard SCPI commands. HDMI output connects to an external display for a larger, clearer view of measurement results.

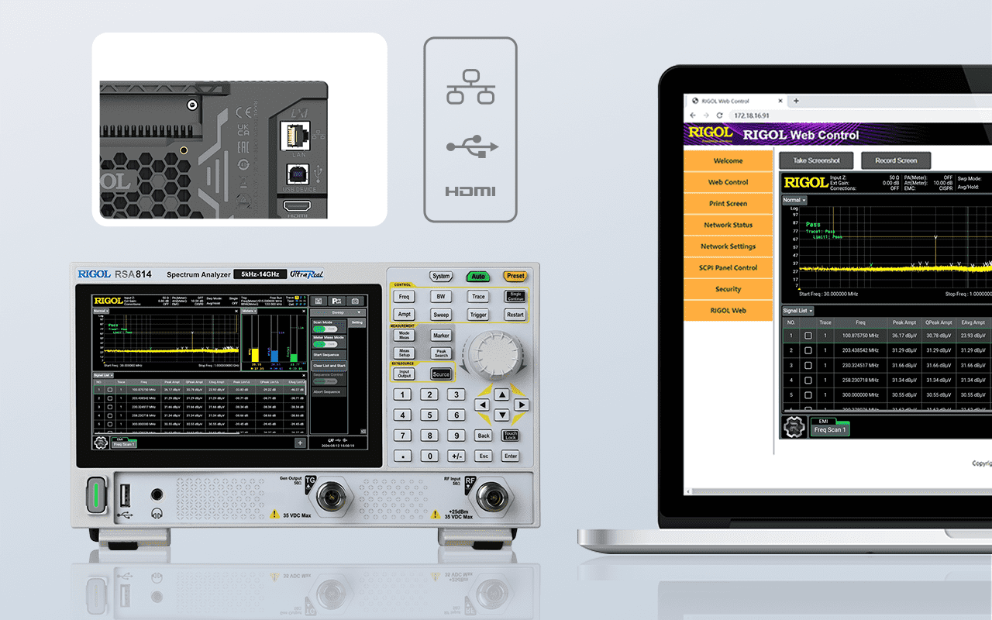

Web Control
Access and control the instrument through a web browser using its IP address; no PC software installation required. The browser interface also supports remote operation and SCPI command development and debugging.
