RSA5000 Series Spectrum Analyzers
The RSA5000 Series (RSA5065, RSA5032, RSA5065-TG, RSA5032-TG, RSA5032N, RSA5065N) real-time spectrum analyzer with real-time analysis and sweep analysis, optional vector signal analysis application software (VSA) and EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 6.5GHz, and it is available with the tracking source “-TG” model, which can be widely used in enterprise R&D, factory production, education and teaching.
Features
Built-in Vector Network Analysis mode

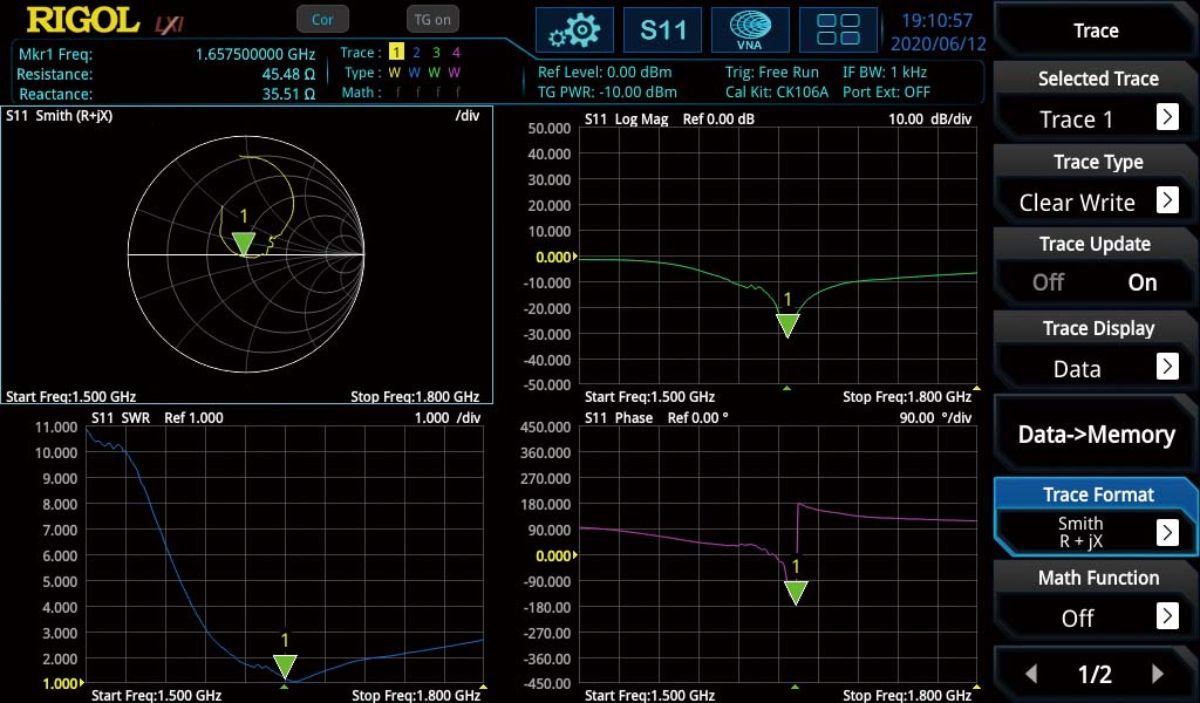

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)
Discover Transient Anomalies Through Ultra Real Technology

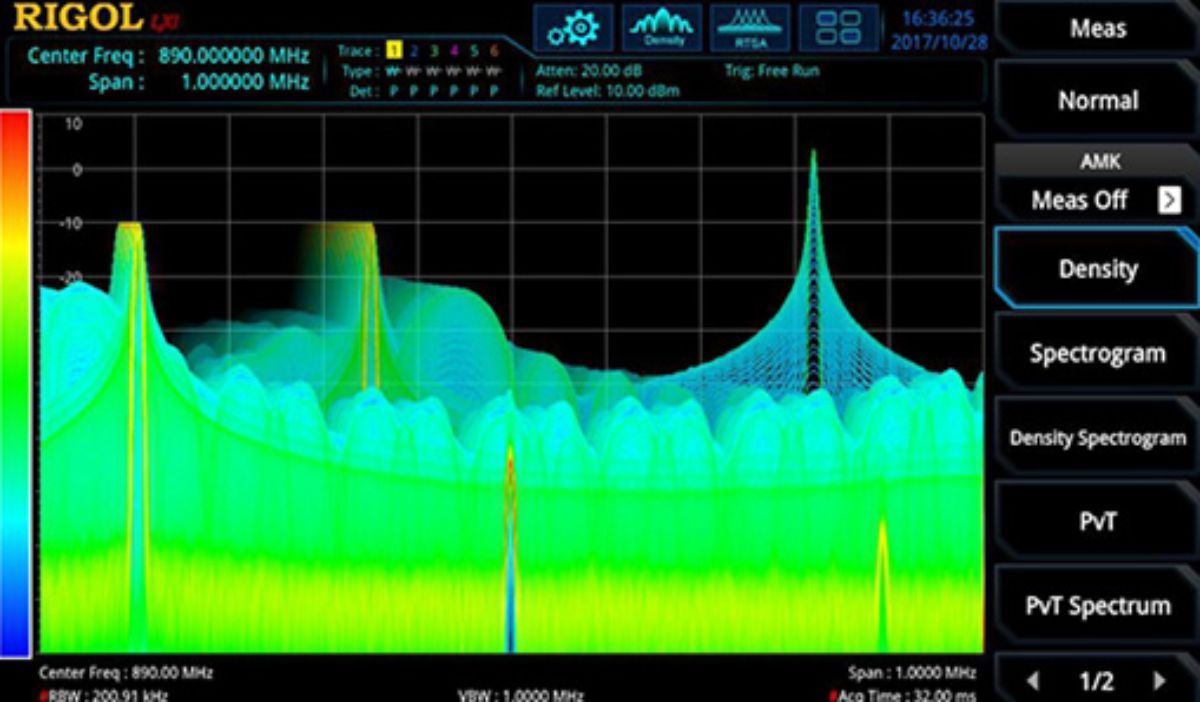

The RSA5000 delivers up to 40MHz of real-time bandwidth using the original Ultra Real technology. In the real-time bandwidth range, transient signals exceeding 7.45us duration can be guaranteed to be 100% captured and accurately measured.
Discover Problems in Design with Vector Analysis

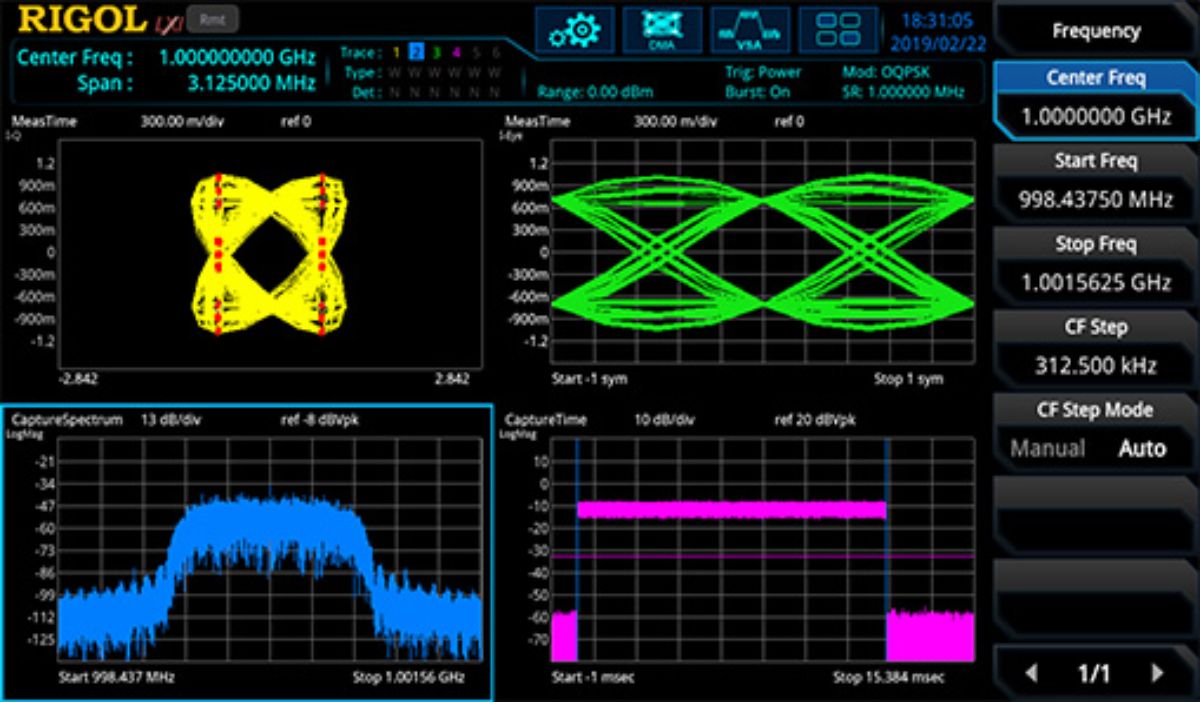

Vector Signal Analysis Function The VSA supports a variety of digital modulation formats such as QAM, PSK, MSK, ASK, FSK, etc. This function is used to quickly demodulate and display multi-dimensional data such as its constellation, eye diagram (baseband signal), spectrogram, demodulation data, etc., to discover problems in the design.
Conduction/radiation Pre-testing with Built-in Emi Test Software

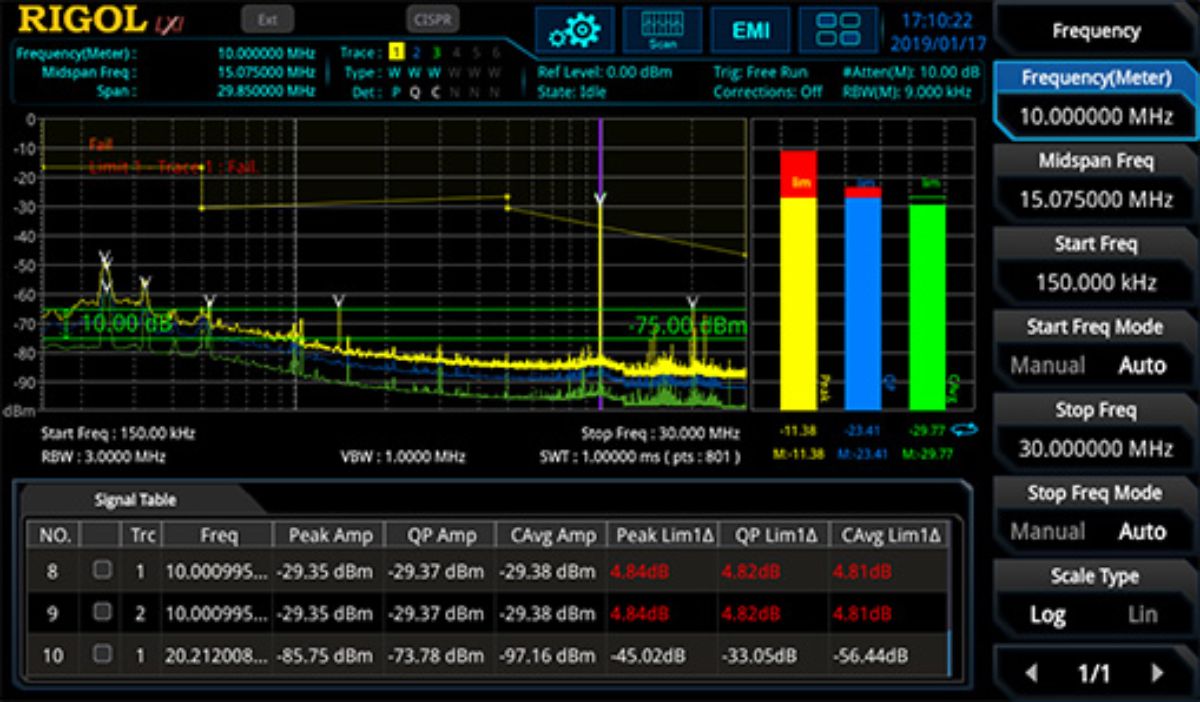

The RSA5000’s built-in EMI pre-test application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
Signal Triggering and Monitoring Via FMT Template

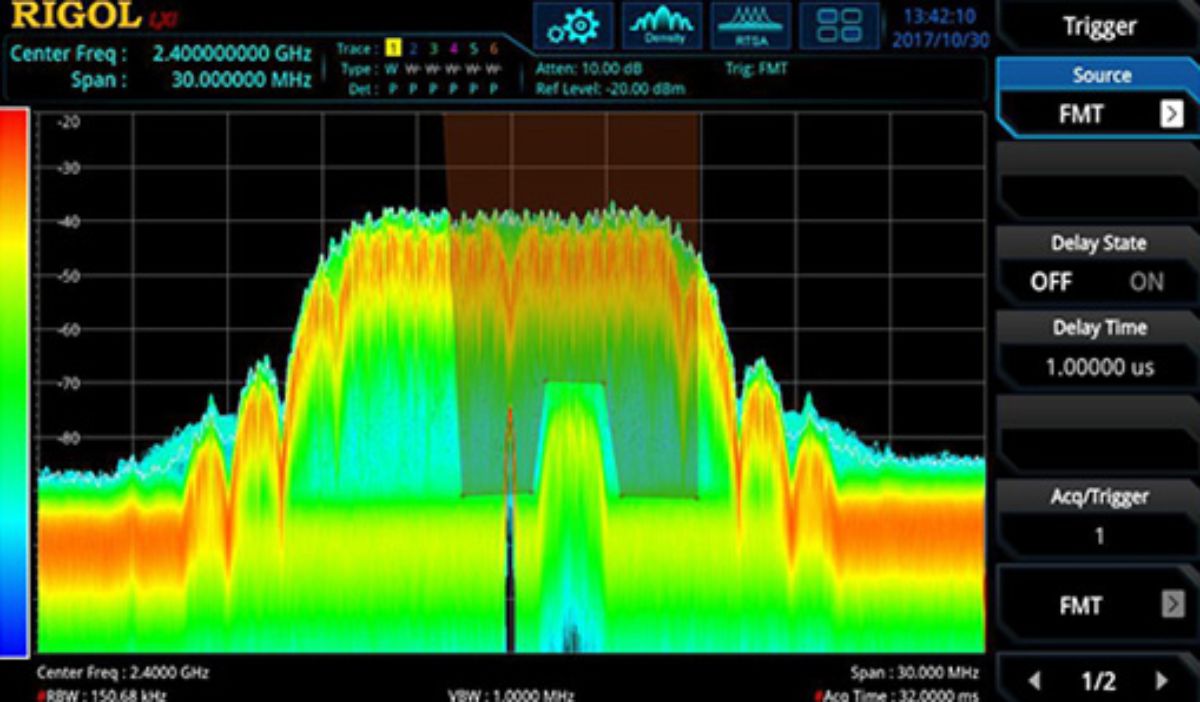

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range. You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
Multiple interfaces to improve the connectivity of the instruments

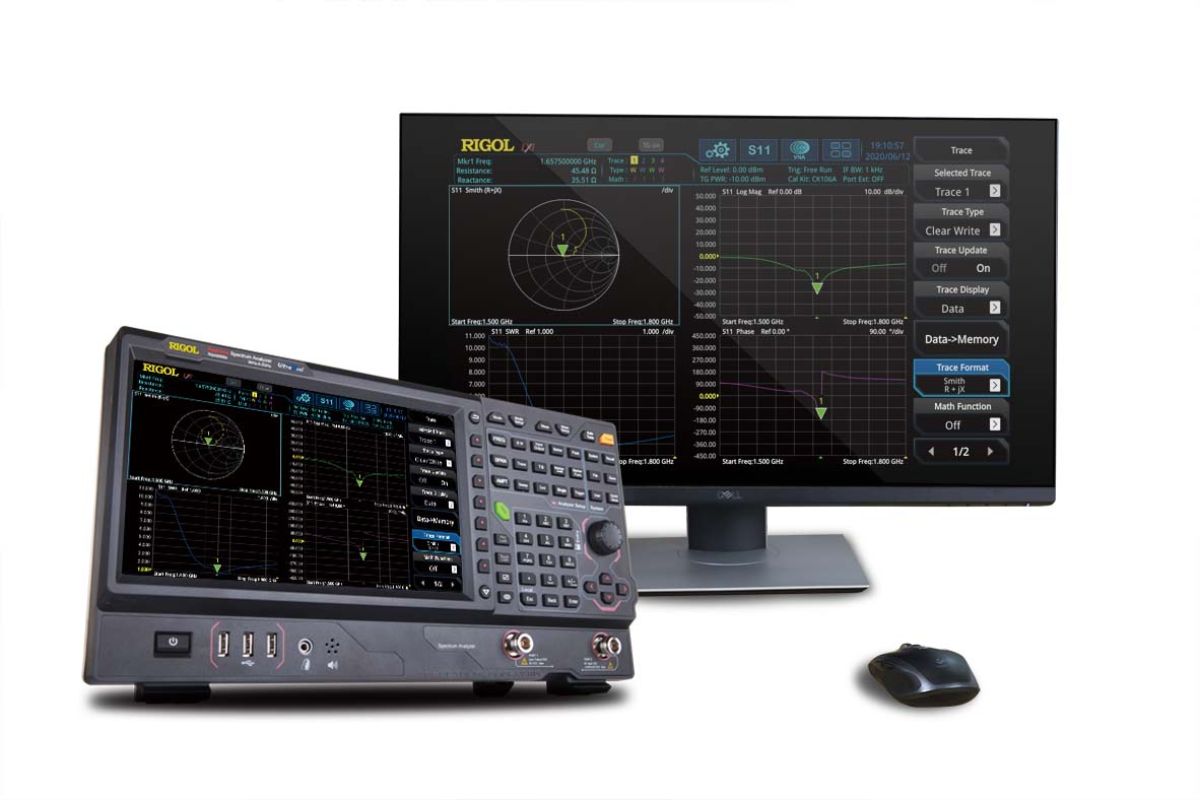

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.
Quickly Complete Operations with a Multi-touch Screen

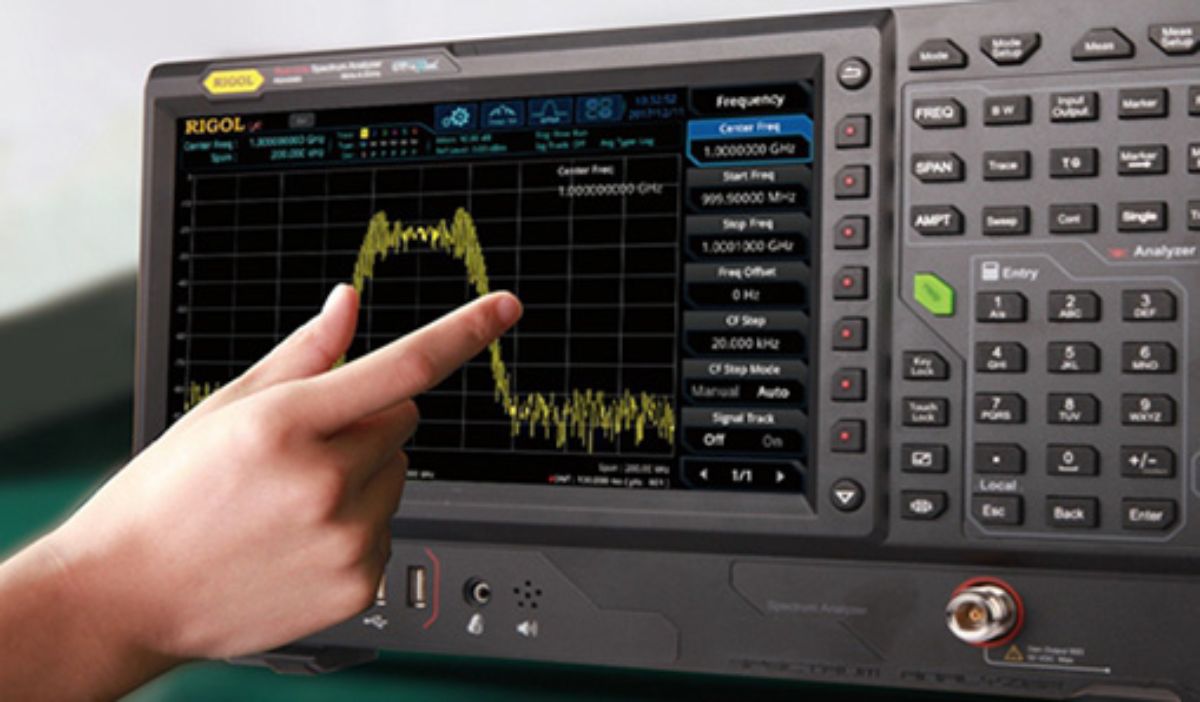

You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
7 Real-time Display Modes

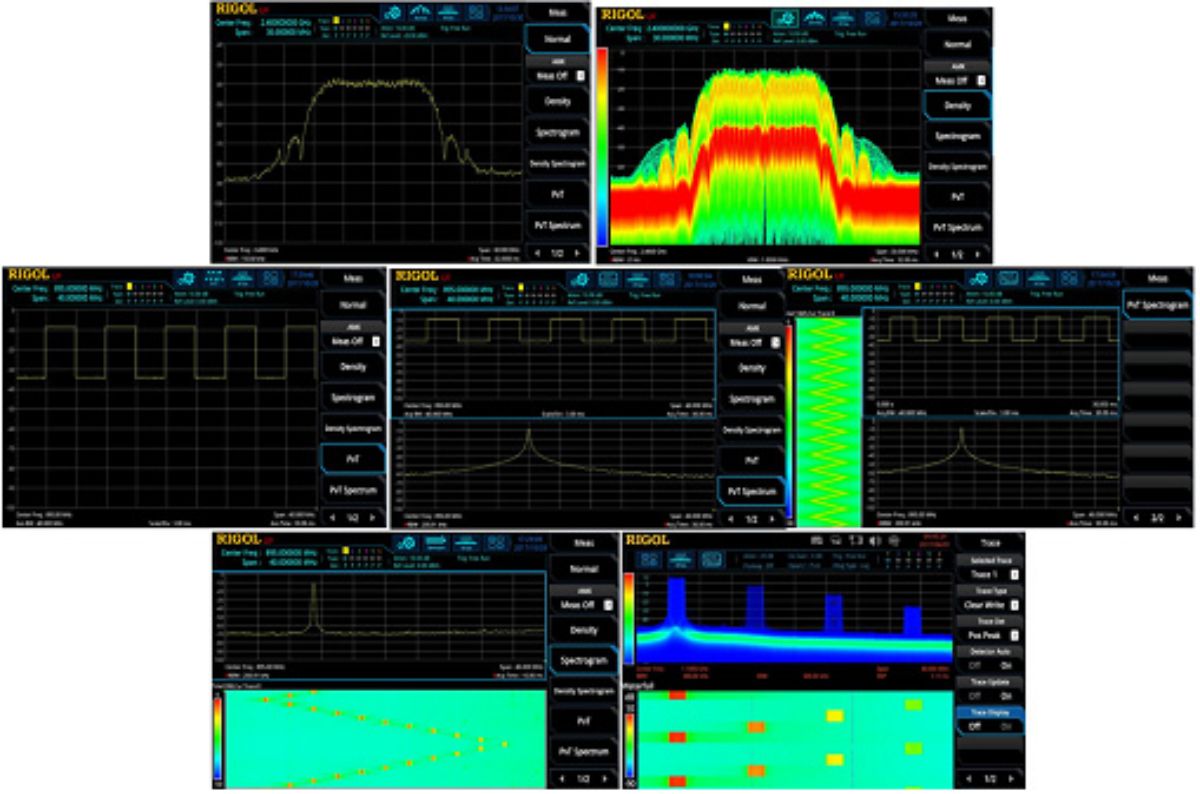

The RSA5000’s seven real-time signal display modes make it easier to capture, isolate and analyze RF signals and systems. The power vs. time and spectrograms show how the signal varies with the acquisition time or continuous acquisition time. Combining these presentations with markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.
Excellent Phase Noise Metric

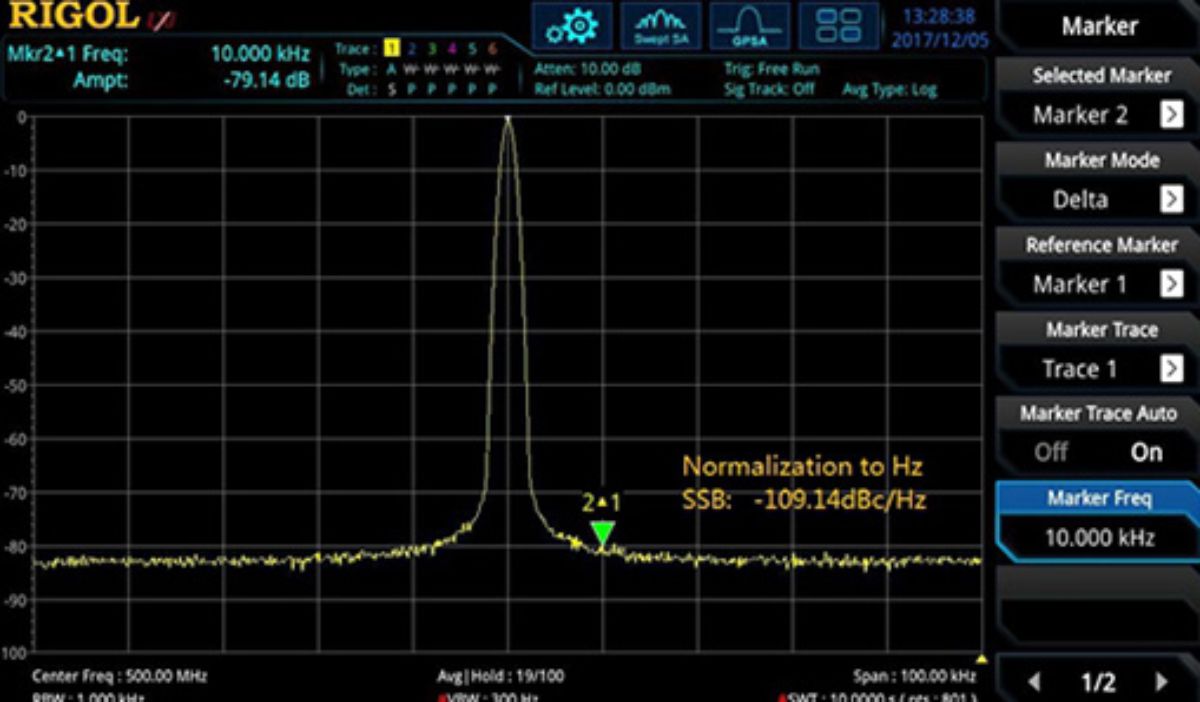

Excellent sweep performance, phase noise as low as -108dBc/Hz
