MSO5000-E Series Digital Oscilloscope
MSO5000-E series (MSO5152-E) digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO5000-E series products support the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
Features

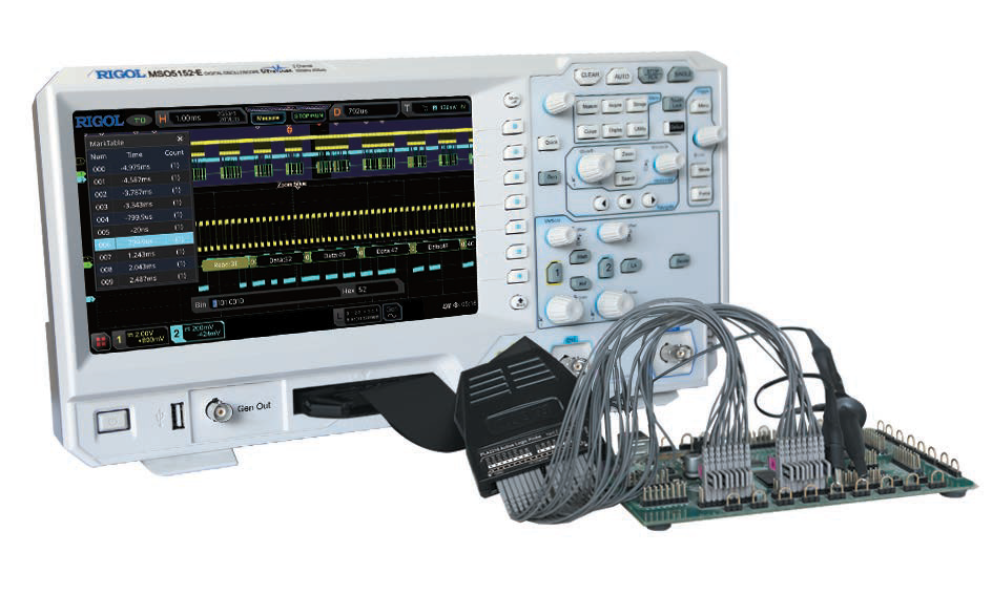

7 in 1 Product Design
Mso5000-e series digital oscilloscope integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

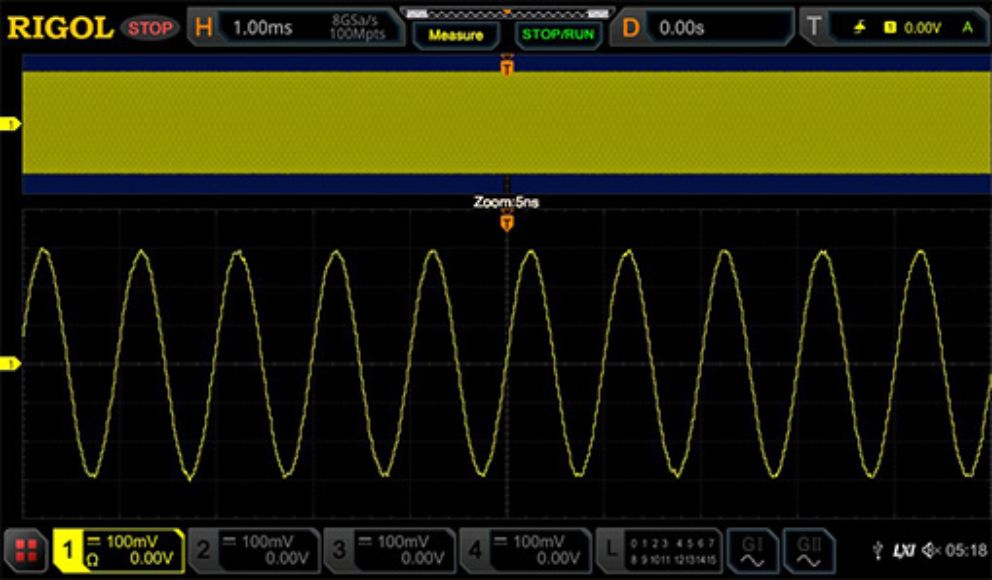

Super High Sampling Bandwidth Ratio
Mso5000-e series provides a real-time sampling rate of up to 4 GSA / s under 150 MHz bandwidth, 26 times of the sampling bandwidth ratio makes it a leader in the oscilloscope products of the same level, and at the same time, it has an ultra long waveform storage depth of 100 mpts.
9 “Multi Touch Capacitive Screen
9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience

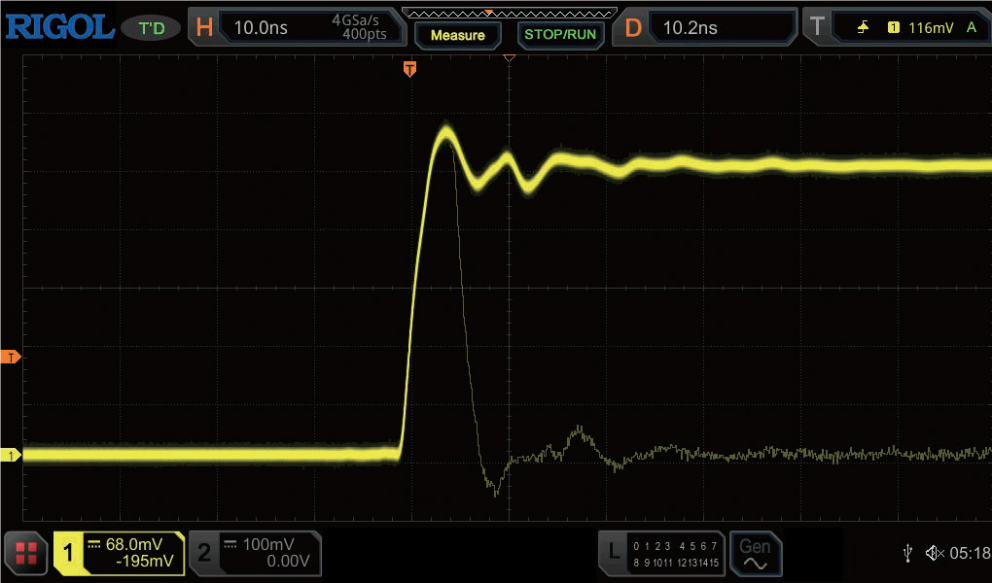

Waveform Capture Rate Up to 300000 Times Per Second
With a waveform capture rate of up to 300000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers

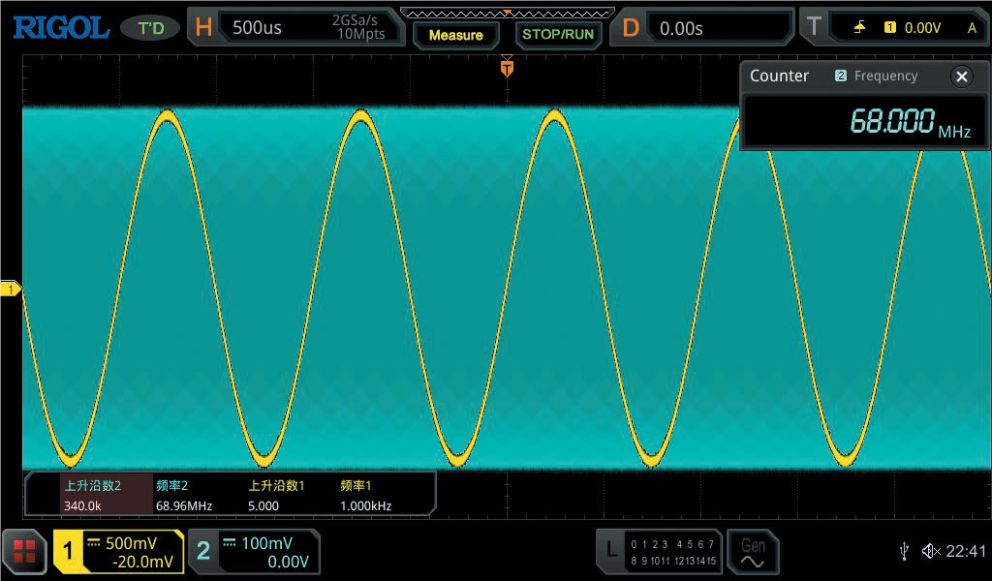

Full Memory Hardware Measurement
At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges

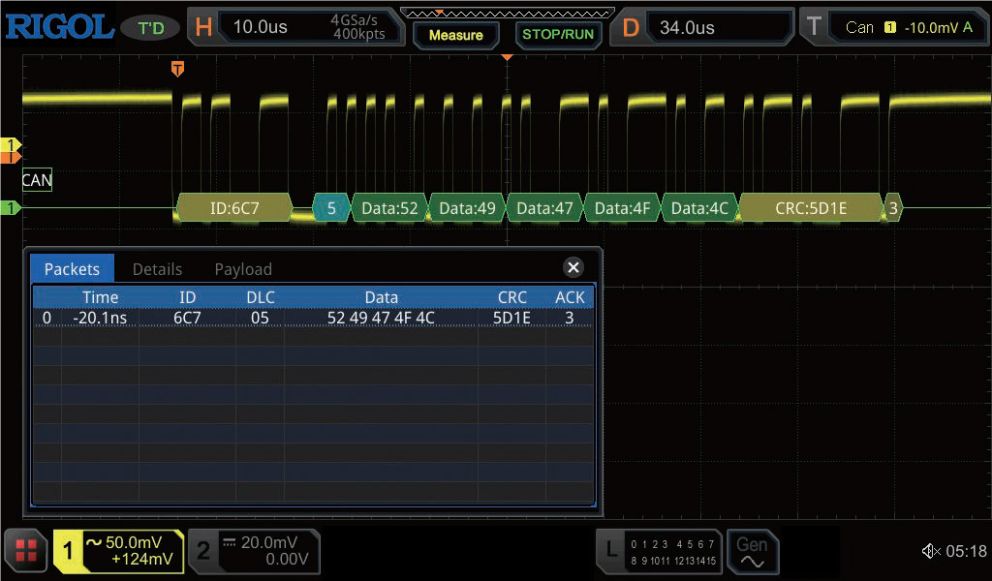

Rich Trigger and Protocol Decoding
Rich serial protocol decoding can decode 4 serial buses at the same time, and full memory data analysis and decoding event table display can help engineers quickly find system faults and locate the error waveform, greatly improving the debugging efficiency of the overall system signal

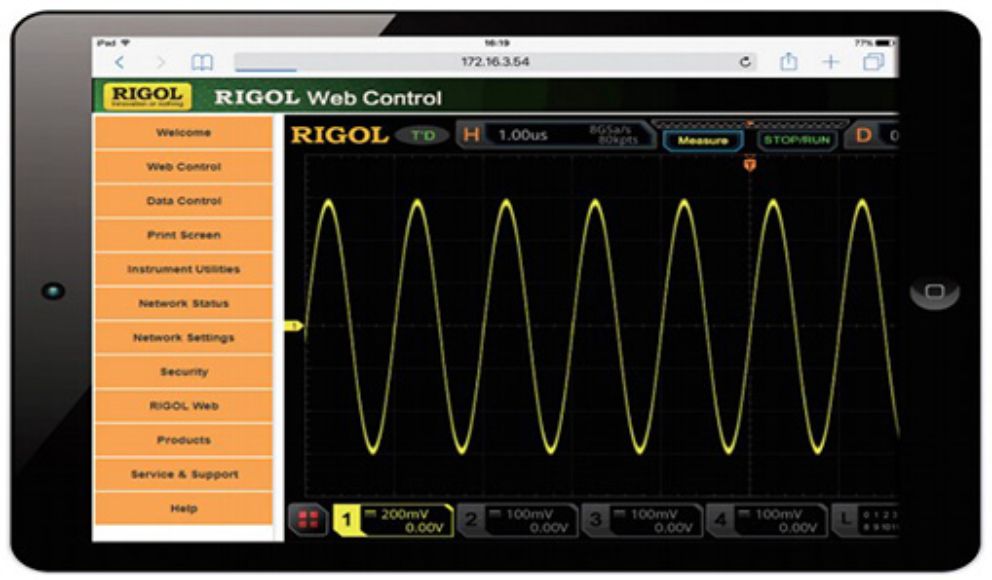

Convenient Web Control Remote Control
The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.
