Analog Bandwidth 1GHz | Analog Channels 4 | Maximum Real-time Sample Rate 4GSa/s |
Maximum Memory Depth 500Mpts(opt.) | Maximum Waveform Capture Rate 1,000,000 wfms/s | Digital Channels 16(Probe opt.) |
Your passion · Our obsession

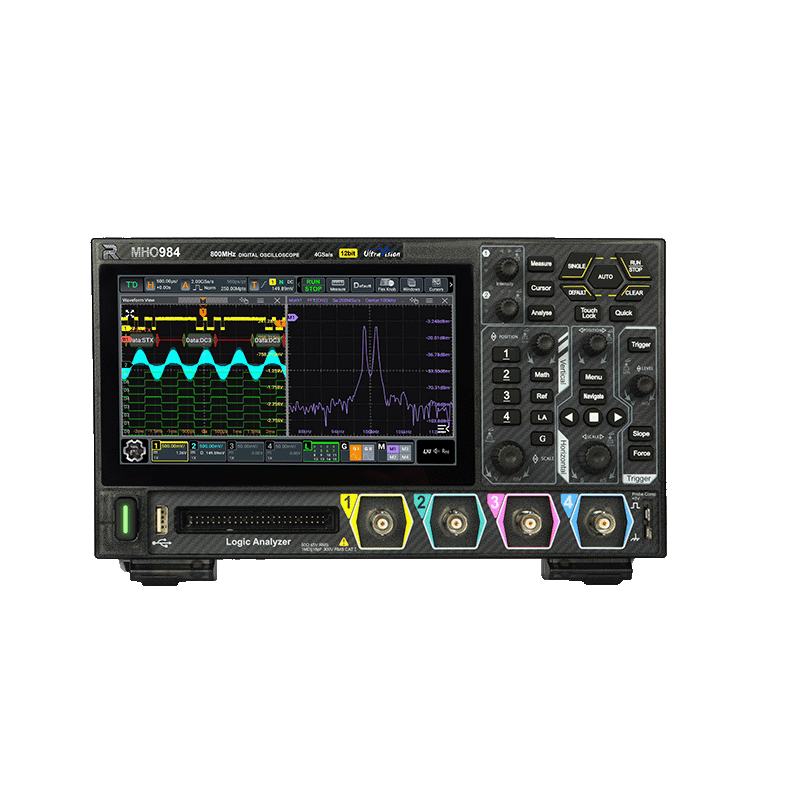

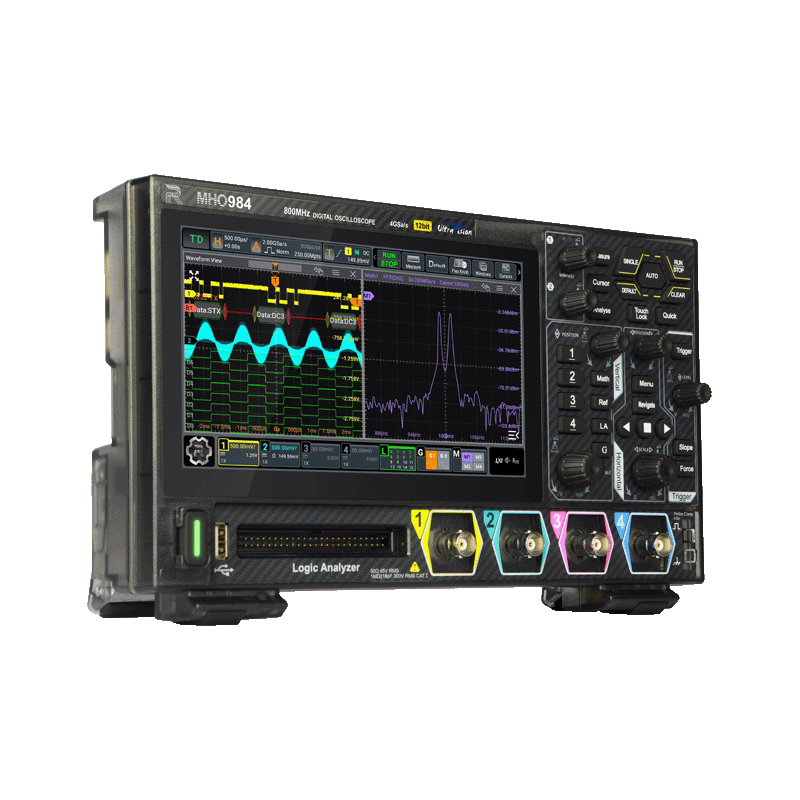

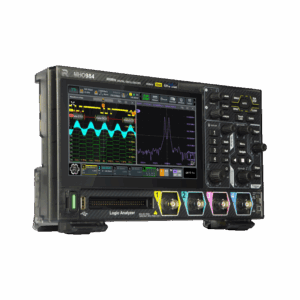

MHO98 Special Edition High-Resolution Oscilloscope
Exclusive Gold Emblem, Crowned for Passion
Every MHO98 Special Edition carries a unique identifier, highlighted by a dazzling 24K gold emblem. It is not only a rare symbol of identity, but also a medal honoring the spirit of passion and exploration. It represents the unwavering curiosity of every technology enthusiast—shining like gold, untarnished by time. More than a collectible, it is the highest tribute to the spirit of exploration, witnessing every moment of your journey in technology.
Masterful Design, Refined Inside and Out

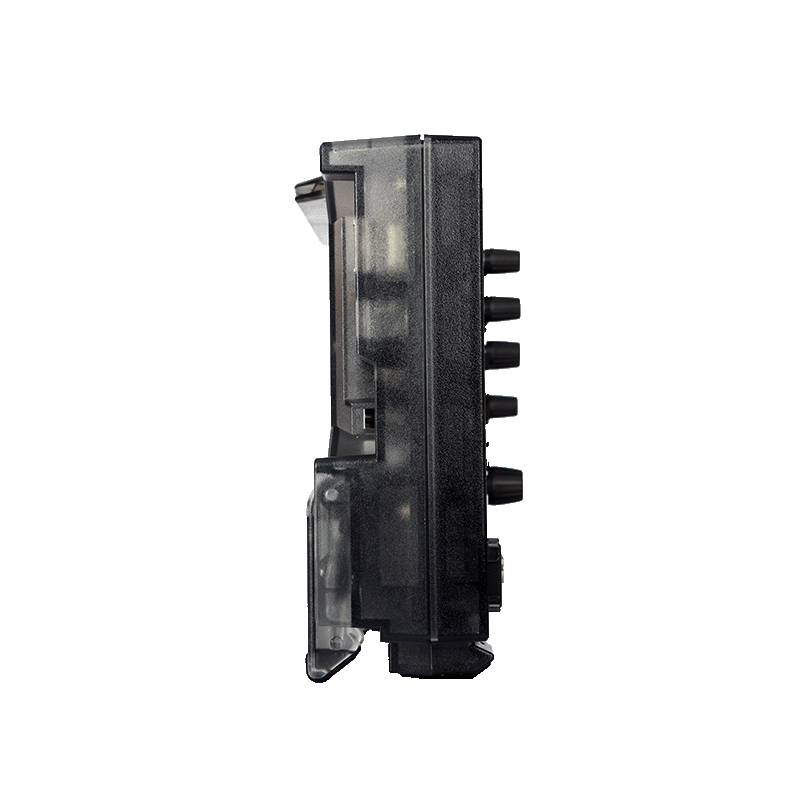

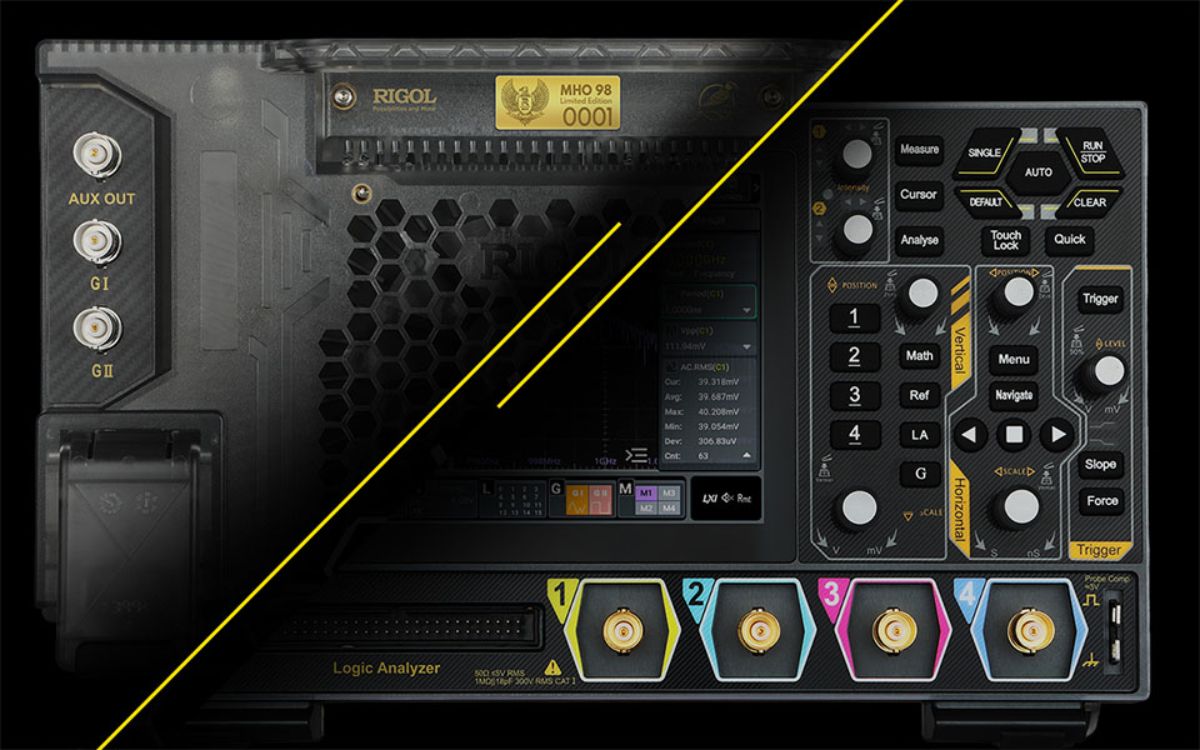

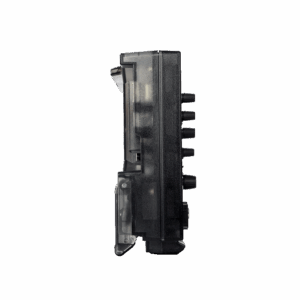

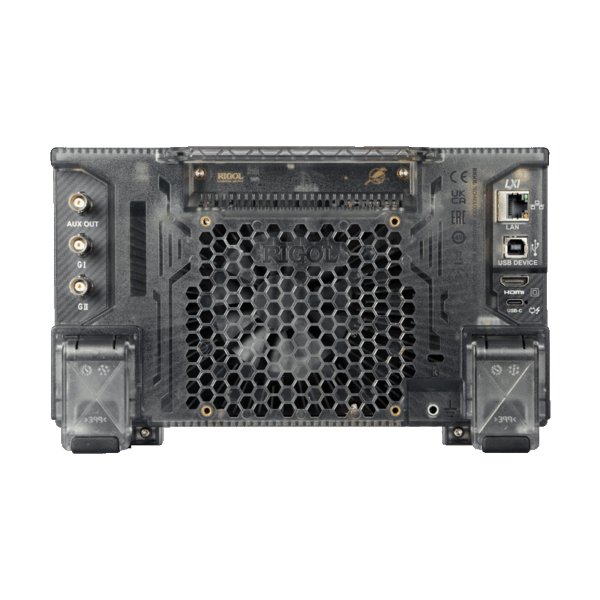

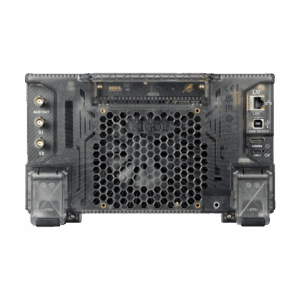

The ID design of the MHO98 Special Edition is a perfect encounter between technology and aesthetics. The front panel adopts a premium metallic shell paired with finely tuned damping knobs, delivering an exceptional tactile experience with every operation. The deep 3D PC diagonal-texture relief shifts with light and shadow, exuding understated luxury. Its semi-transparent back cover—like a “window of exploration”—reveals the intricate circuitry within, showcasing its uncompromising power. This elegance, from the outside in, deeply resonates with engineers and embodies the true spirit of passion and exploration.
Full Power, Fully Equipped – A Peak Experience for Enthusiasts
The MHO98 Special Edition is our highest tribute to every enthusiast and scientist devoted to RIGOL and the art of test and measurement. We believe that true passion deserves the finest reward. That’s why we broke conventions to deliver a completely different level of experience—at the same price. No extra options required; out of the box, it’s already the peak: 1 GHz maximum bandwidth, 500 Mpts ultra-long memory, dual-channel 100 MHz signal source, 16-channel logic probe, and a full suite of protocol decoding options. Nothing is held back. This is not just an instrument, but a heartfelt gift honoring your relentless spirit of exploration.
Explore the MHO900 Series Oscilloscopes
Powerful Performance, Redefining the Entry-Level Standard
The MHO900 Series, with its unmatched performance in its class, completely reshapes the boundaries of entry-level oscilloscopes. It offers up to 800 MHz analog bandwidth to handle high-speed signal challenges with ease, and its standard 4 analog channels provide flexible support for complex system debugging. At its core is a 12-bit high-resolution ADC, delivering 16 times the detail of traditional 8-bit instruments—making even the faintest anomalies visible. Combined with an ultra-long 500 Mpts memory depth, it ensures long-duration capture and analysis of complex signals without missing a detail. With the MHO900, you can confidently tackle future testing challenges and achieve a true leap from “entry” to “mastery.”
All-in-One Power, An Integrated Efficiency Tool

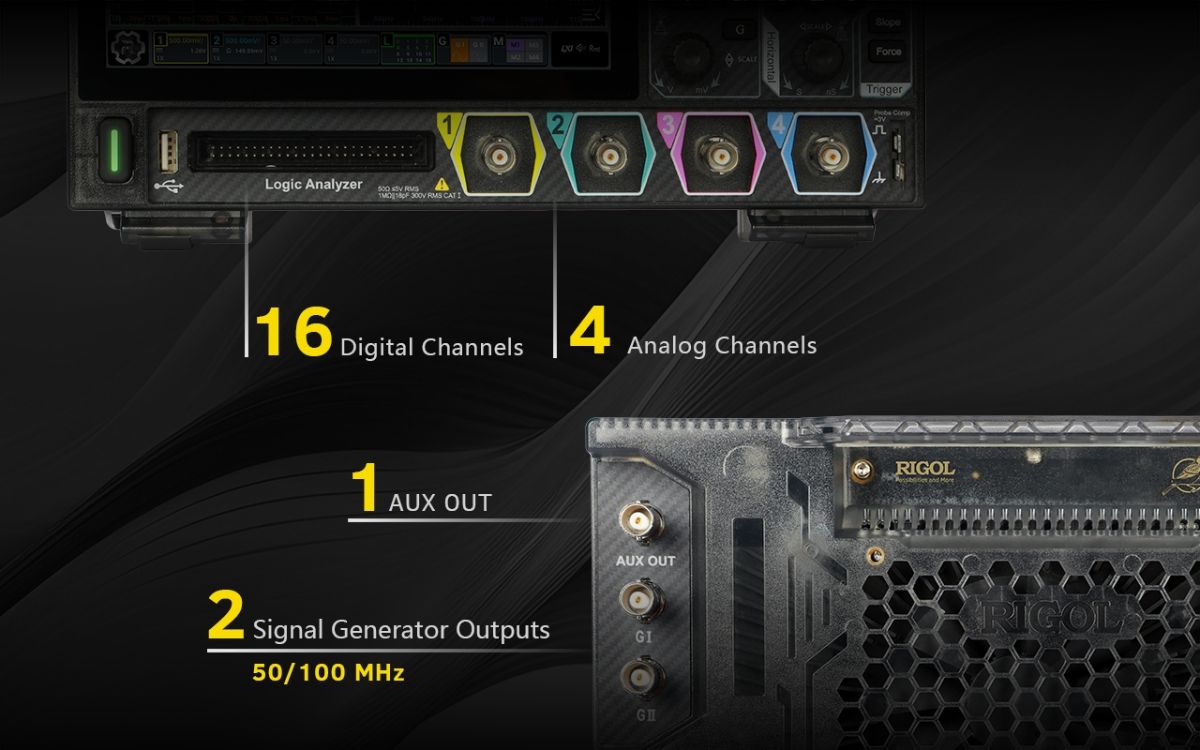

The MHO900 is far more than an oscilloscope—it is a powerful all-in-one time-domain workstation. With 16 digital channels standard, it allows perfect synchronization and analysis of analog and digital signals, giving you complete insight into mixed-signal systems. Additionally, you can opt for the built-in dual-channel signal generator, capable of outputting pure sine waves up to 100 MHz, seamlessly integrated with the powerful Bode Plot analysis function. This combination makes it an ideal solution for complex analysis and testing challenges such as power supply loop stability. By bringing multiple instrument functions together in one compact device, the MHO900 significantly boosts your efficiency.
Wireless Connectivity, Instant Access

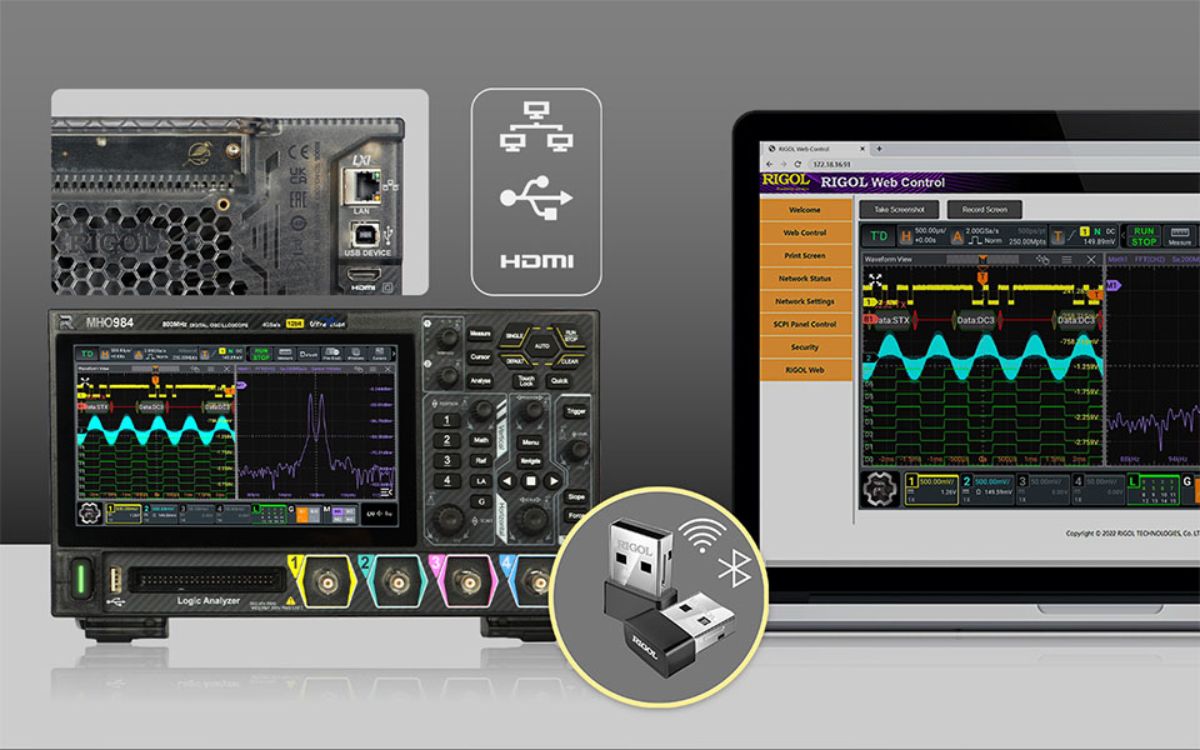

The MHO900, equipped with standard Bluetooth and Wi-Fi adapters, allows engineers full remote network access and control, enabling unattended automated testing or long-distance data monitoring—greatly improving efficiency and safety. Bluetooth connectivity expands the possibilities for peripheral devices without occupying any physical ports, eliminating cumbersome cables. This “out-of-the-box” wireless solution is designed to create a cleaner, modern testing environment, allowing you to focus more on data analysis and technological innovation.
Model | Analog Bandwidth | Analog Channels | Maximum Real-time Sample Rate | Maximum Memory Depth | Maximum Waveform Capture Rate | Digital Channels | Built-in Signal Source |
MHO98 | 1GHz | 4 | 4GSa/s | 500Mpts | 1,000,000 wfms/s | 16 | 100MHz, 2CH |
MHO984 | 800MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,000,000 wfms/s | 16(Probe opt.) | 100MHz, 2CH（opt.） |
MHO954 | 500MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,000,000 wfms/s | 16(Probe opt.) | 100MHz, 2CH（opt.） |
MHO934 | 350MHz | 4 | 4GSa/s | 500Mpts(opt.) | 1,000,000 wfms/s | 16(Probe opt.) | 100MHz, 2CH（opt.） |
