DP700 Series DC Power Supply
DP700 Series (DP711, DP712) is a basic power supply product designed for users with lower cost and smaller size and high reliability. It has low ripple noise, fast transient response, excellent power supply and load regulation rate, powerful timing output function and complete protection function.
Features

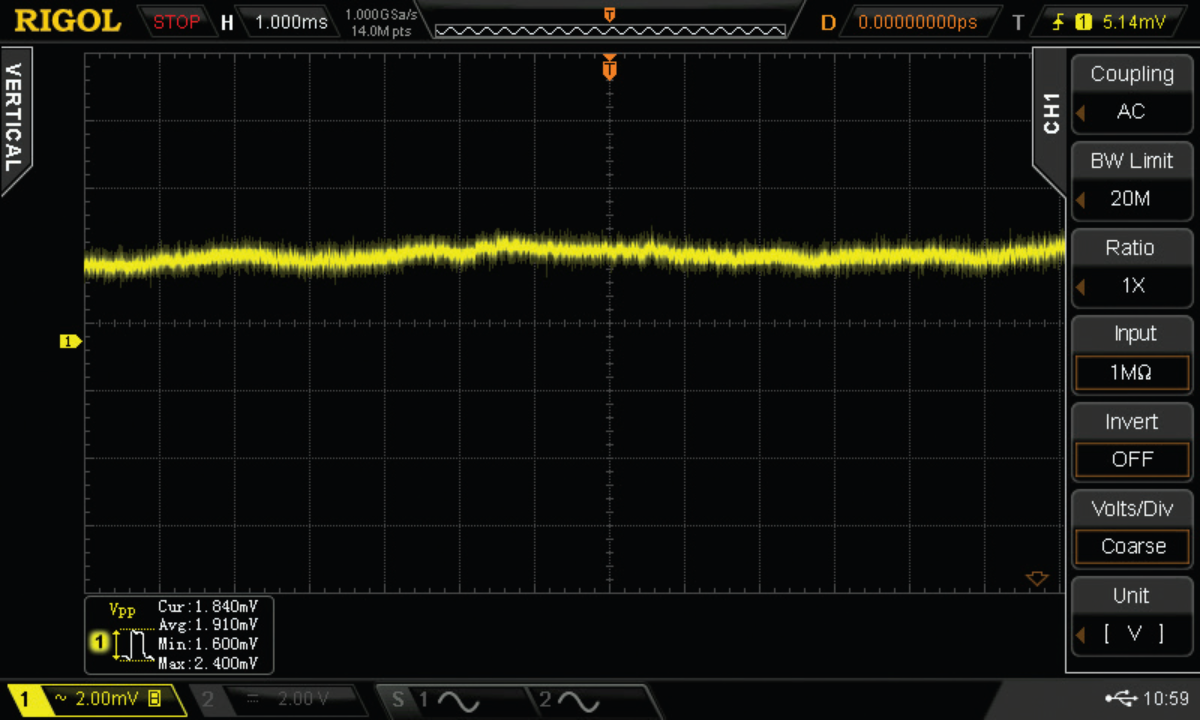

Low Ripple Noise
Ultra low noise design (< 500uvrms / 3mvpp), to meet the user’s demand for high purity power supply

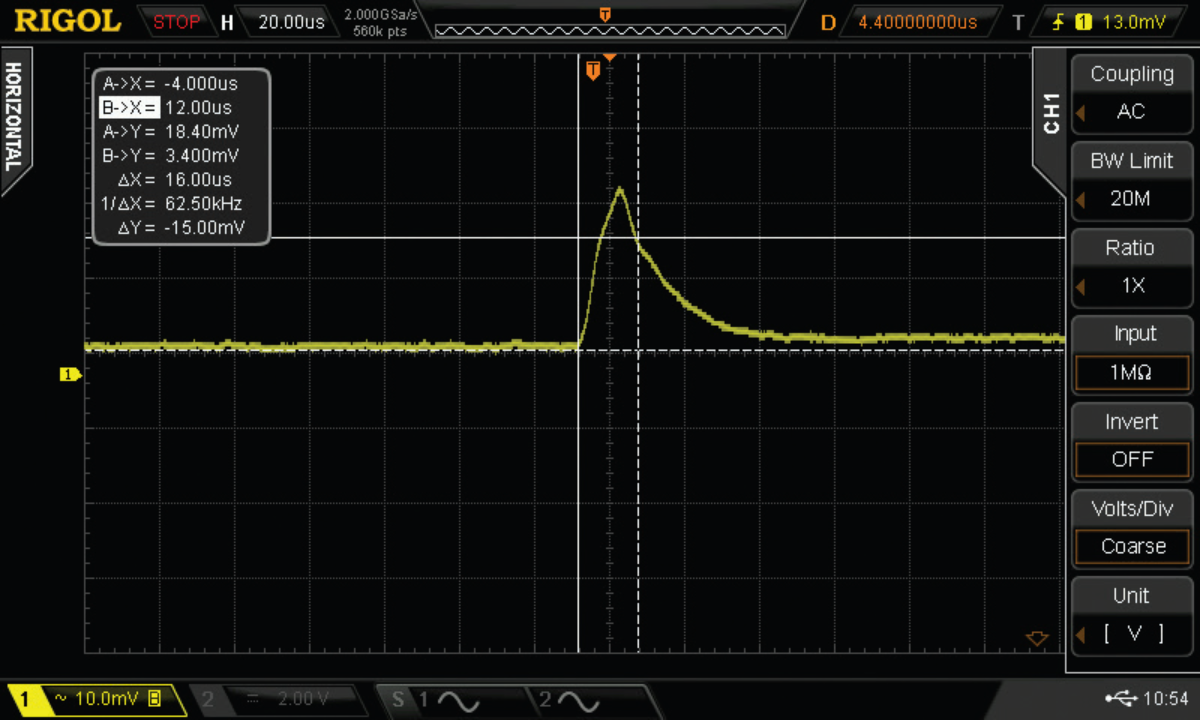

Fast transient response
When the transient response time is less than 50 μ s, when the load current changes, the output voltage can quickly return to the set value to ensure the output quality.

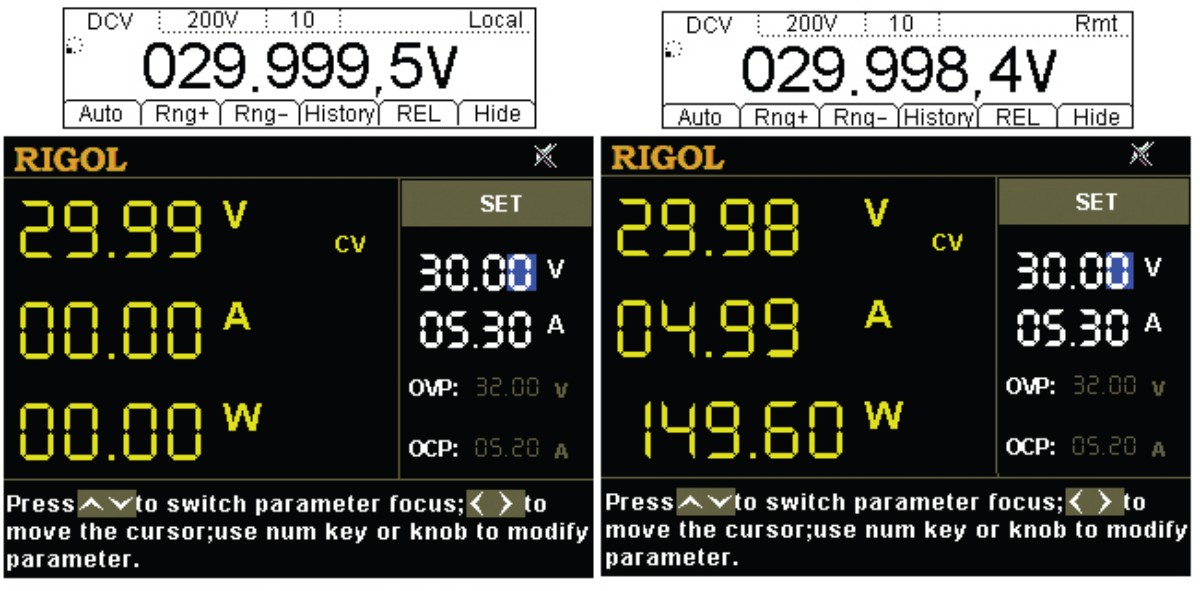

Excellent power & load regulation
0.01% power regulation rate and load regulation rate to ensure the stability and safety of output.

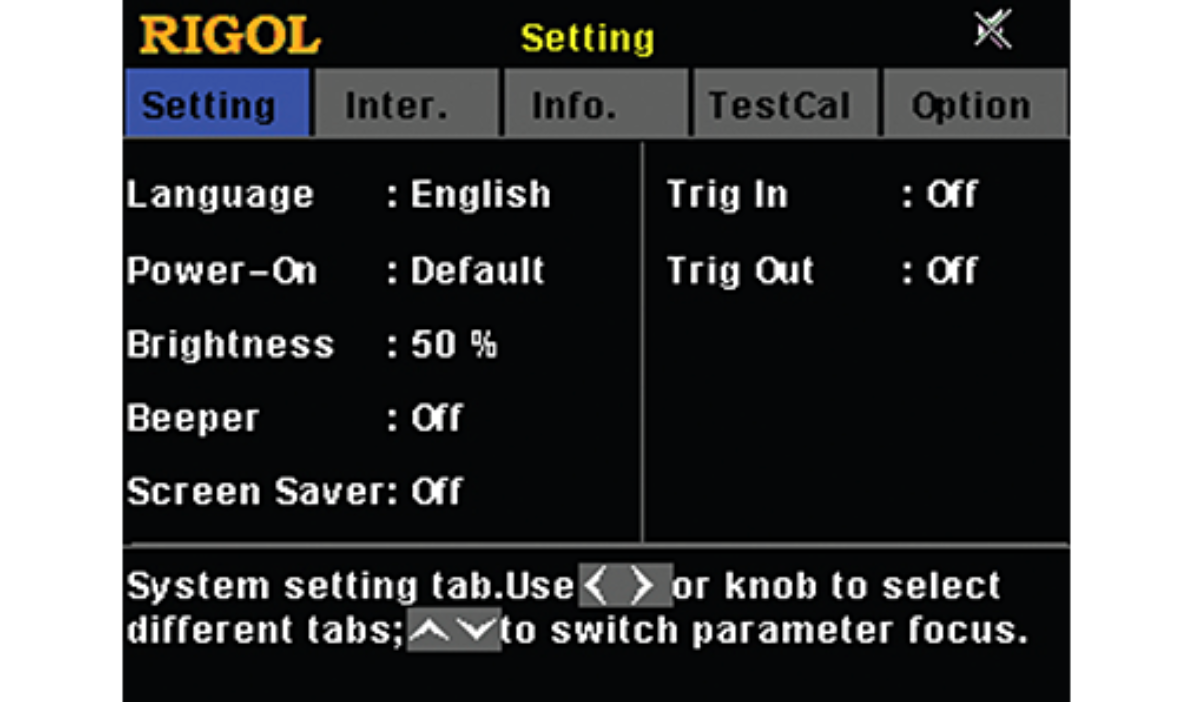

Convenient trigger function
When multiple power supplies are connected in series or in parallel, the external trigger function can make multiple power supplies output synchronously.

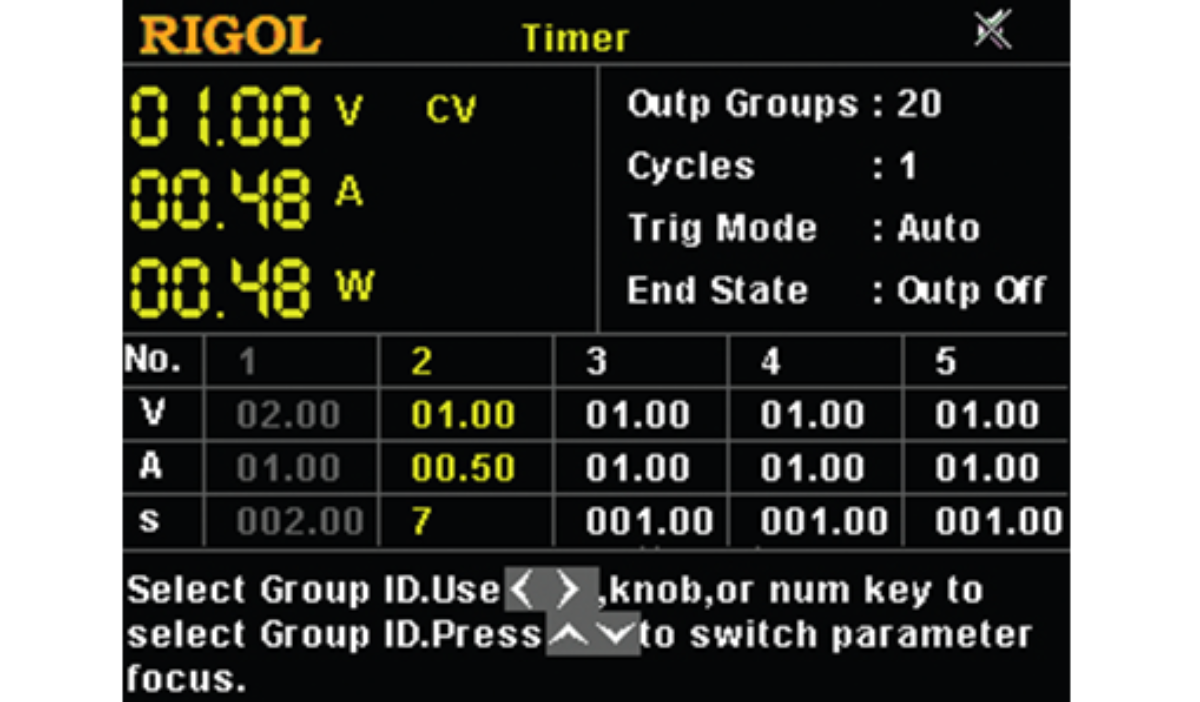

Timing output function
When the timing output is on, the voltage and current values of different periods can be configured according to the preset timer parameters to provide varying voltage and current output for the load.

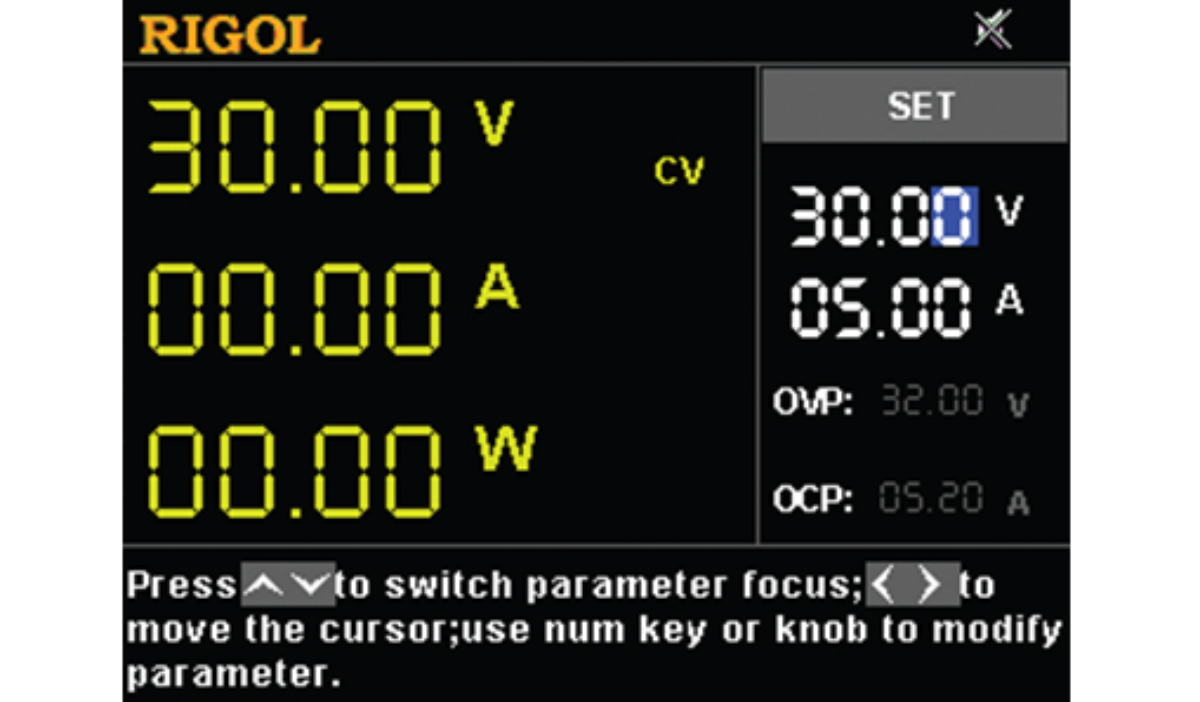

OVP & OCP
Perfect over-voltage / over-current protection (OVP / OCP), the user can set the limit value of over-voltage and over-current protection, when over-voltage or over-current occurs, the power will automatically shut down the output and give a prompt message.
