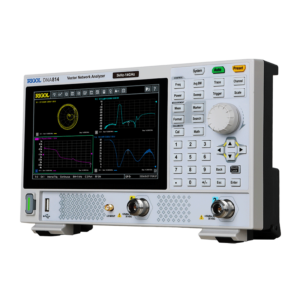

Every model weighs just 4.2 lb and fits easily into the RIGOL Ultra-Portable Instrument Bag, so you can take professional RF measurements wherever the job takes you.

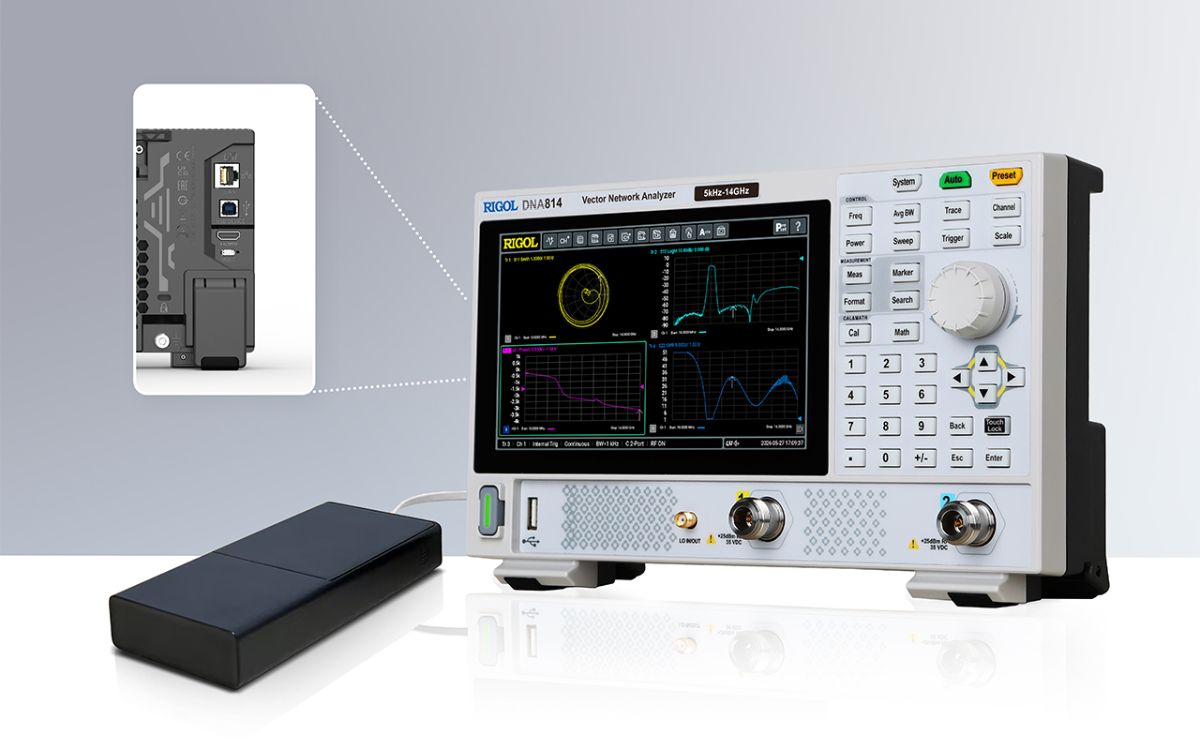

Standard USB Type-C Power Delivery
The USB-C port supports widely used USB PD protocols. Pair the instrument with a compatible power bank to stay powered during travel, remote work, and field testing.
Wide Frequency Coverage. More Measurement Possibilities.
Frequency coverage from 5 kHz to 14 GHz and a true two-port architecture support all four S-parameters (S11, S12, S21, and S22) as well as impedance measurements. Two units can also be cascaded to support expanded multiport measurements.

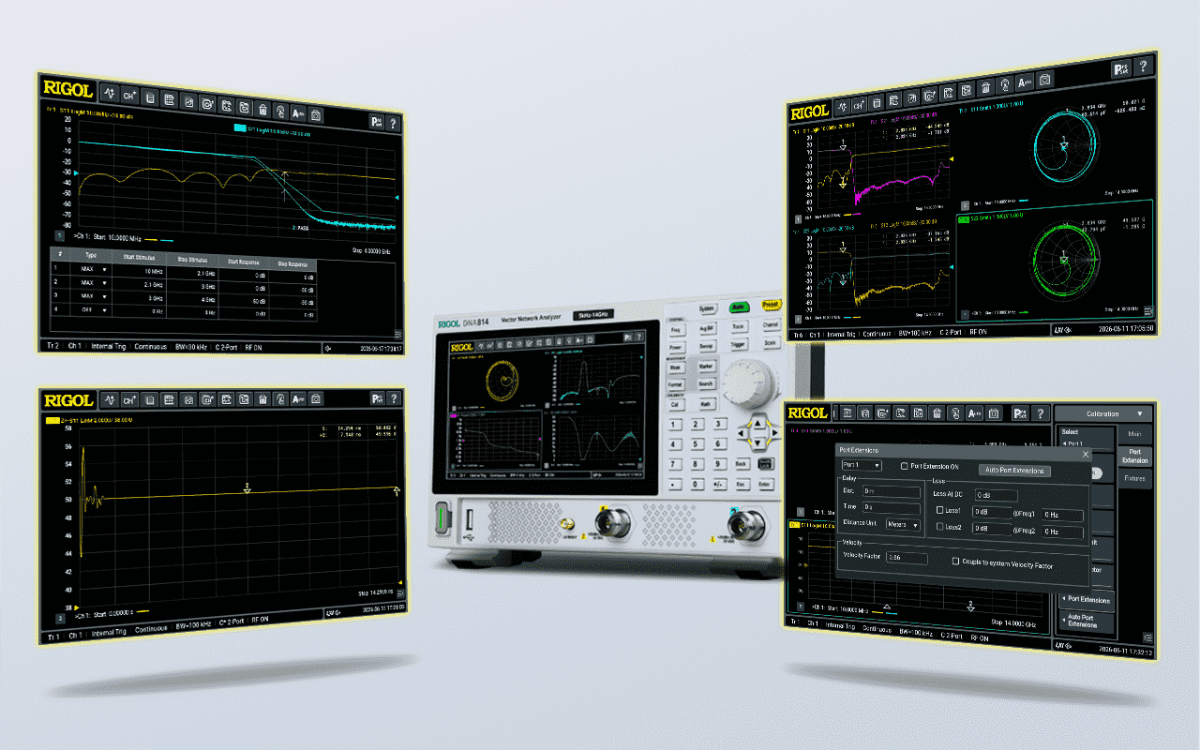

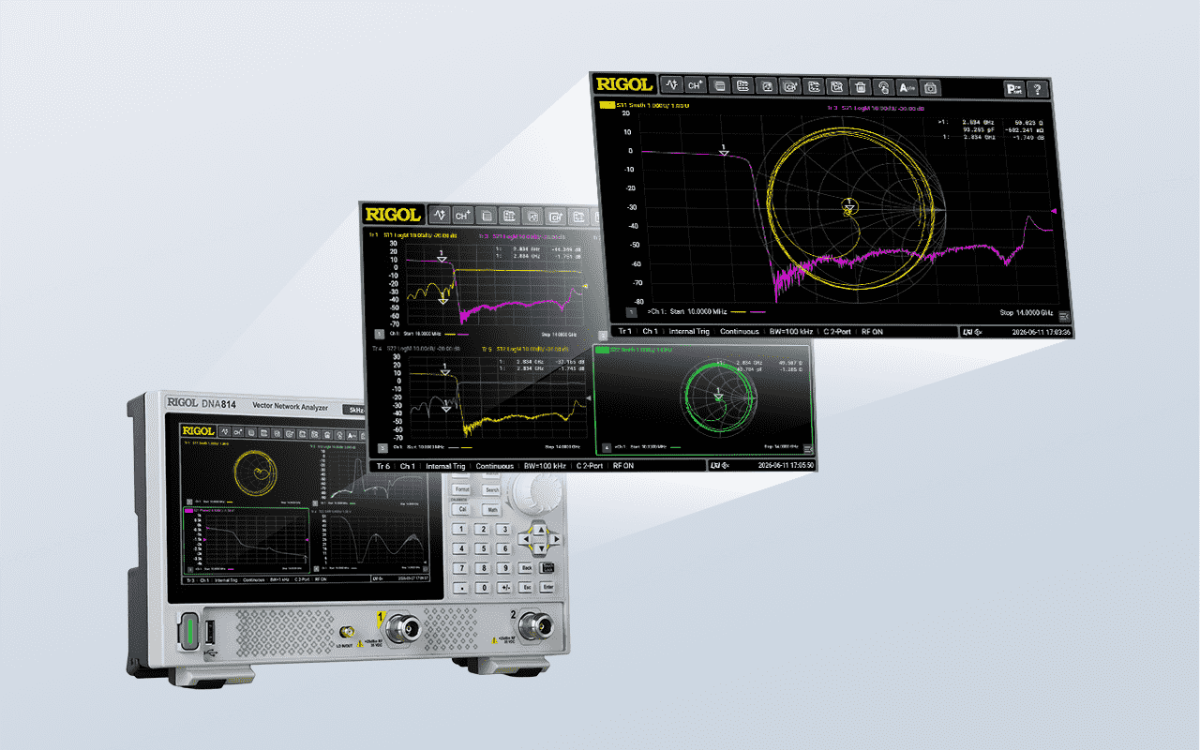

Full-Featured Vector Network Analysis
Every model supports port extension, fixture de-embedding, pass/fail limit testing, distance-to-fault analysis, and time-domain impedance analysis for locating cable faults and discontinuities. Multiple data formats and windowed display layouts make it easier to view and compare measurement results.

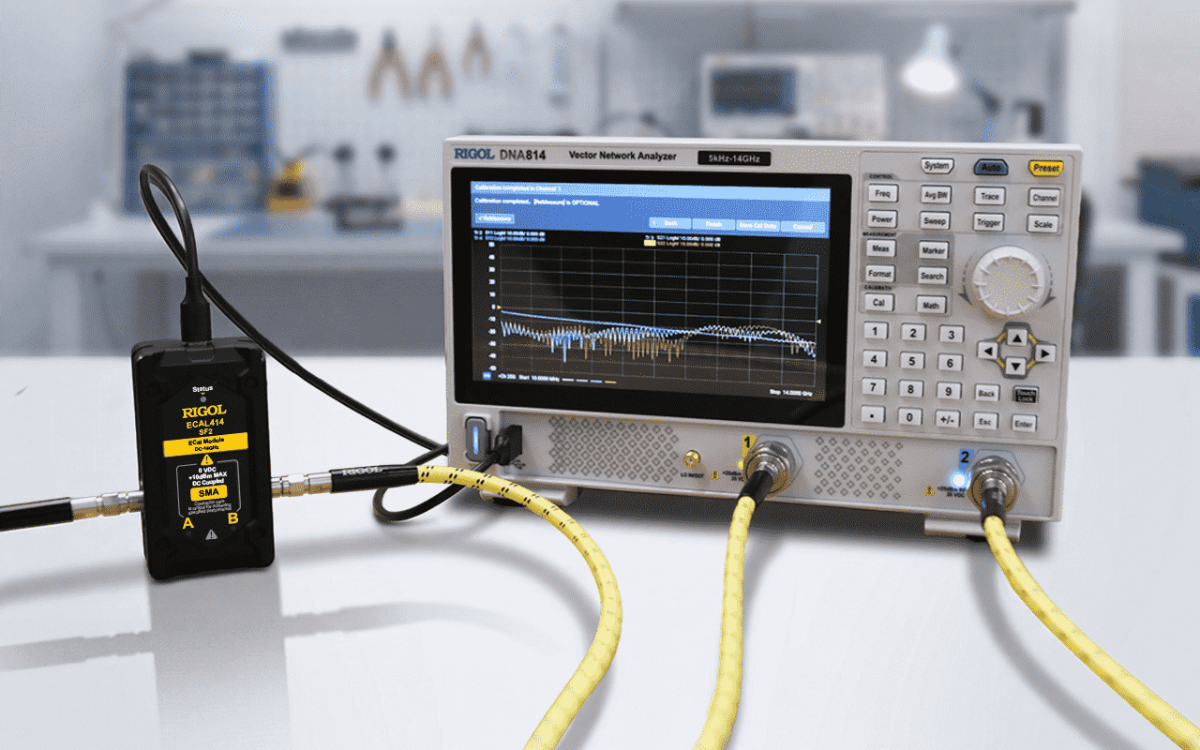

New Electronic Calibration Kits
The new ECAL300 and ECAL400 Series electronic calibration kits simplify two-port calibration with a quick connection and a single touch. Precision mechanical calibration kits are also supported, giving you the flexibility to choose the calibration method that best fits your application.

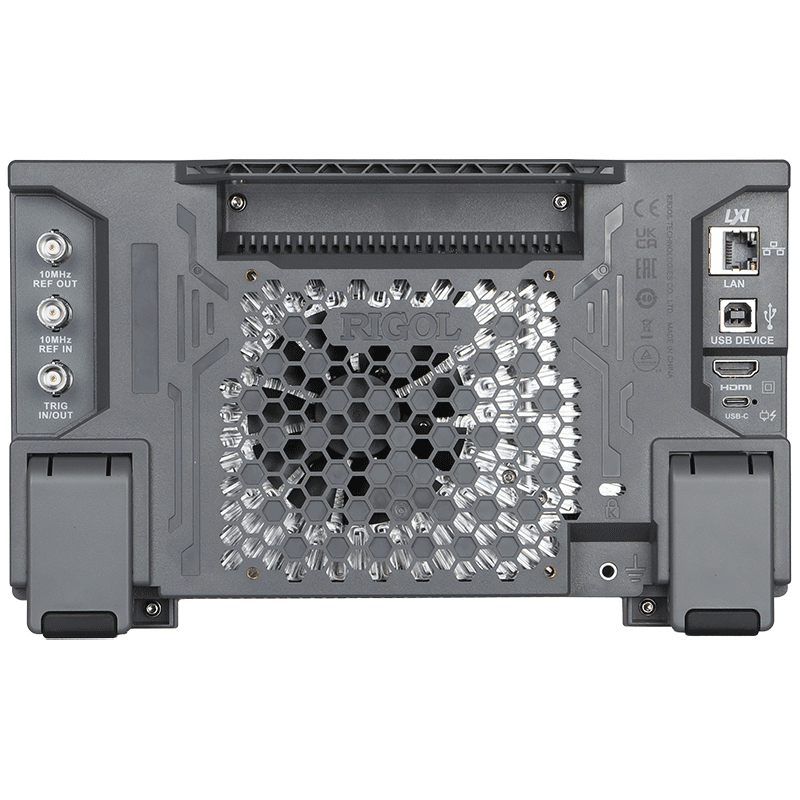

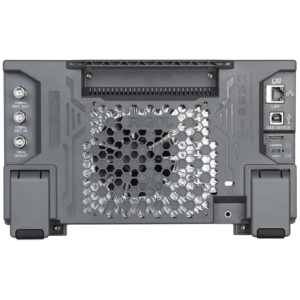

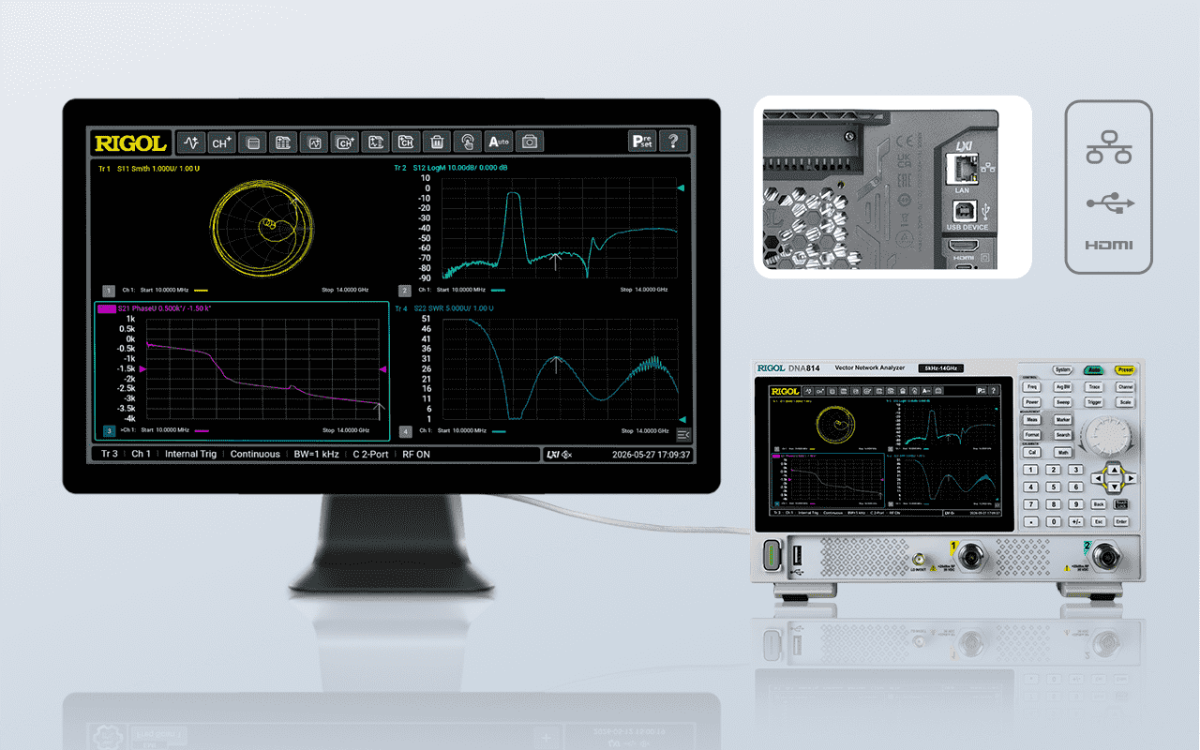

Standard USB, LAN, and HDMI Connectivity
USB and LAN interfaces provide remote instrument control with support for standard SCPI commands. HDMI output lets you connect an external display for a larger, clearer view of measurement results.

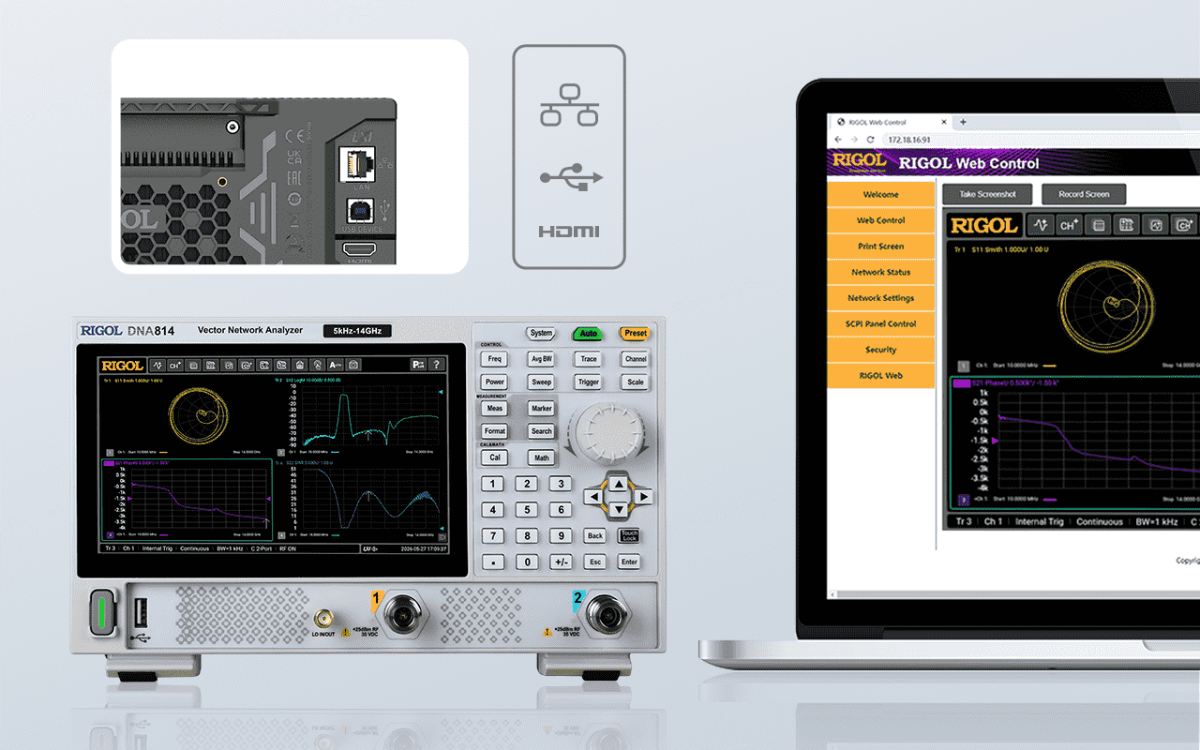

Web Control
Access and control the instrument through a web browser using its IP address; no PC software installation required. The browser interface also supports remote operation and SCPI command development and debugging.
