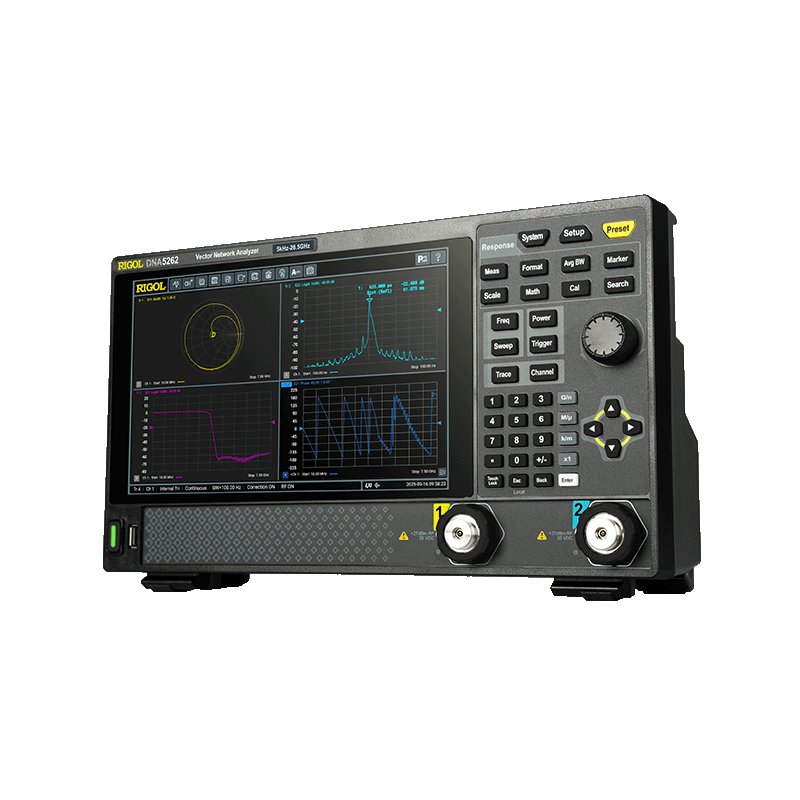

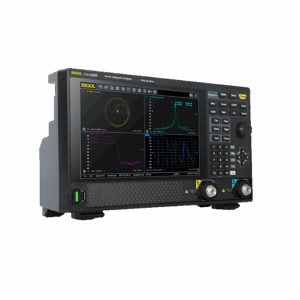

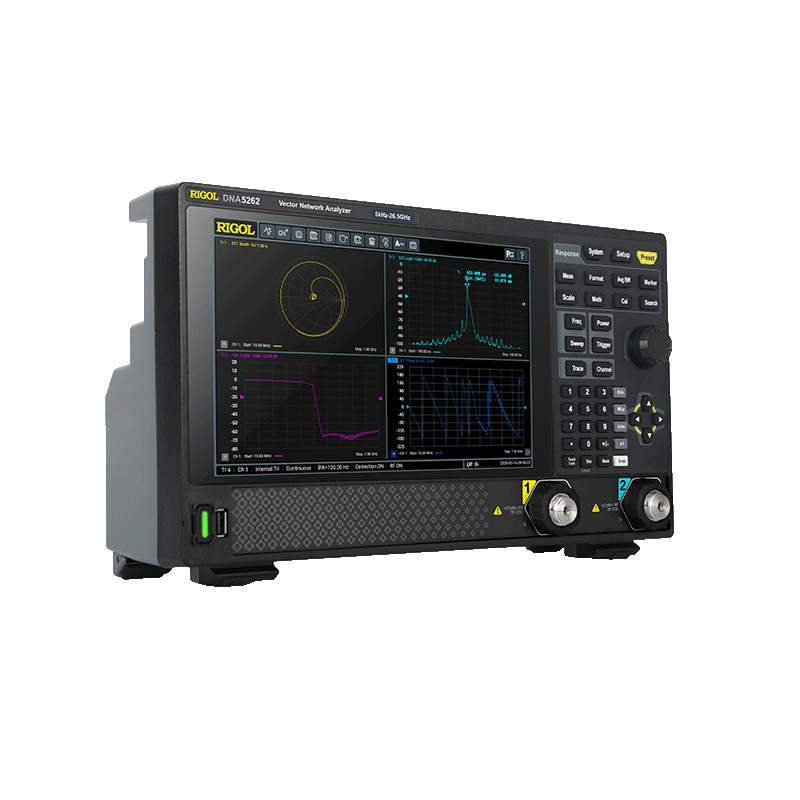

Explore the DNA5000 Vector Network Analyzer

Broad Frequency Range for Diverse Applications

Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

---

Superior Performance & Stability

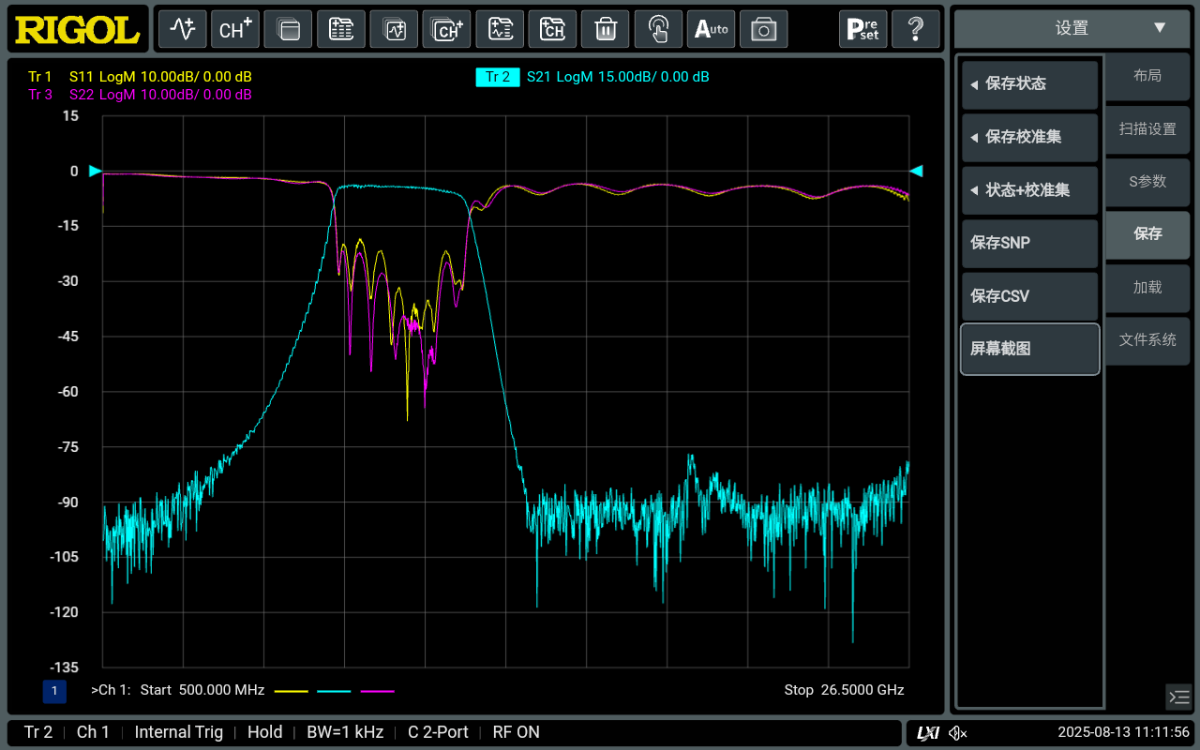

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

---

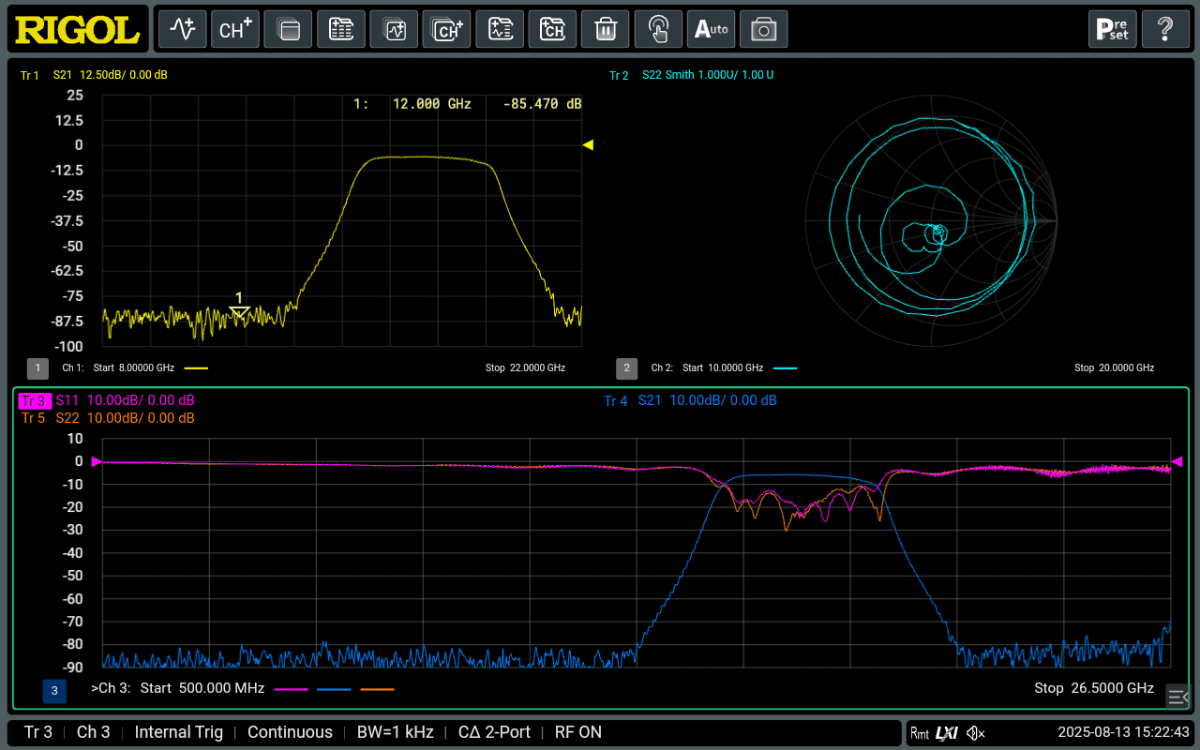

Advanced Analysis Tools Built-In

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

---

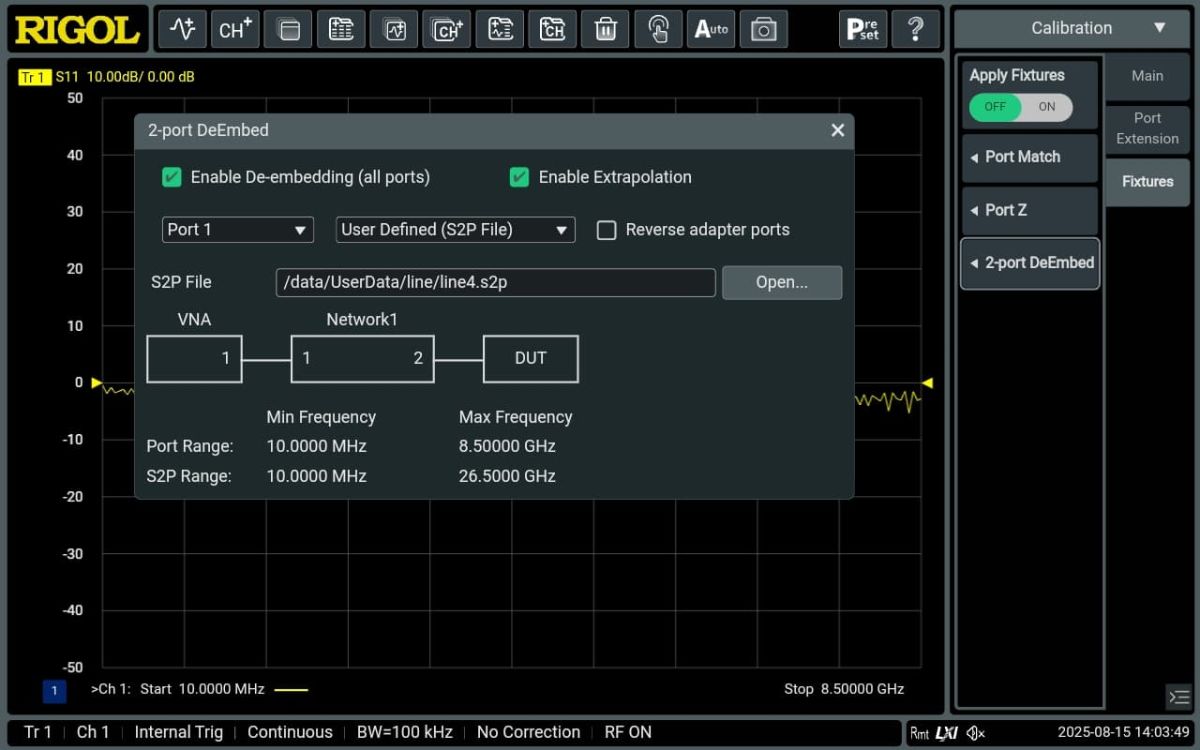

True Device Performance via De-embedding

See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

---

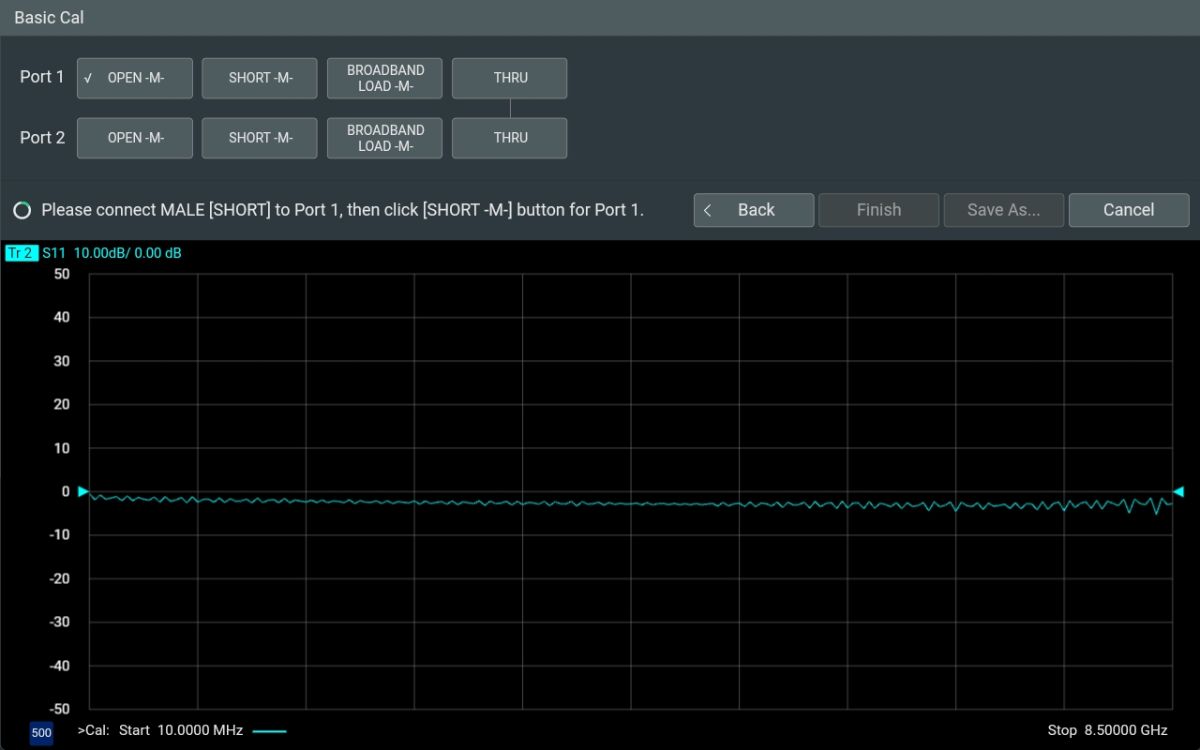

Intuitive Calibration

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

---

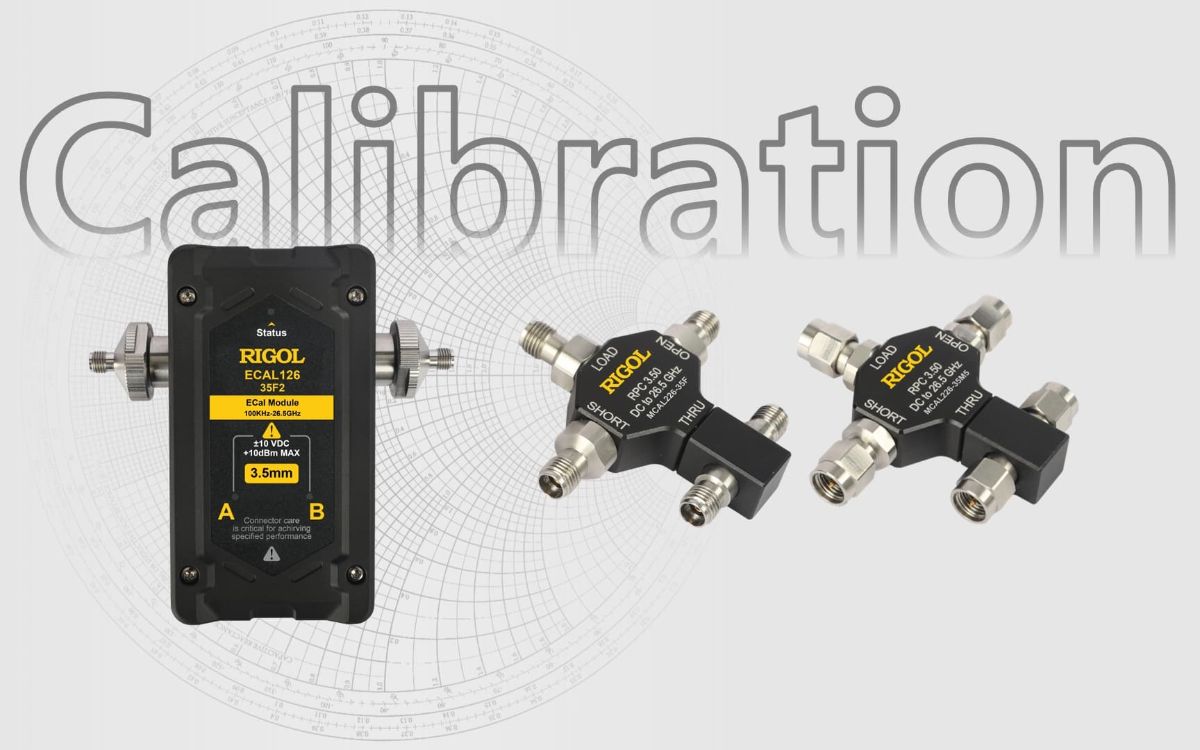

Mechanical or Electronic Calibration

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

---

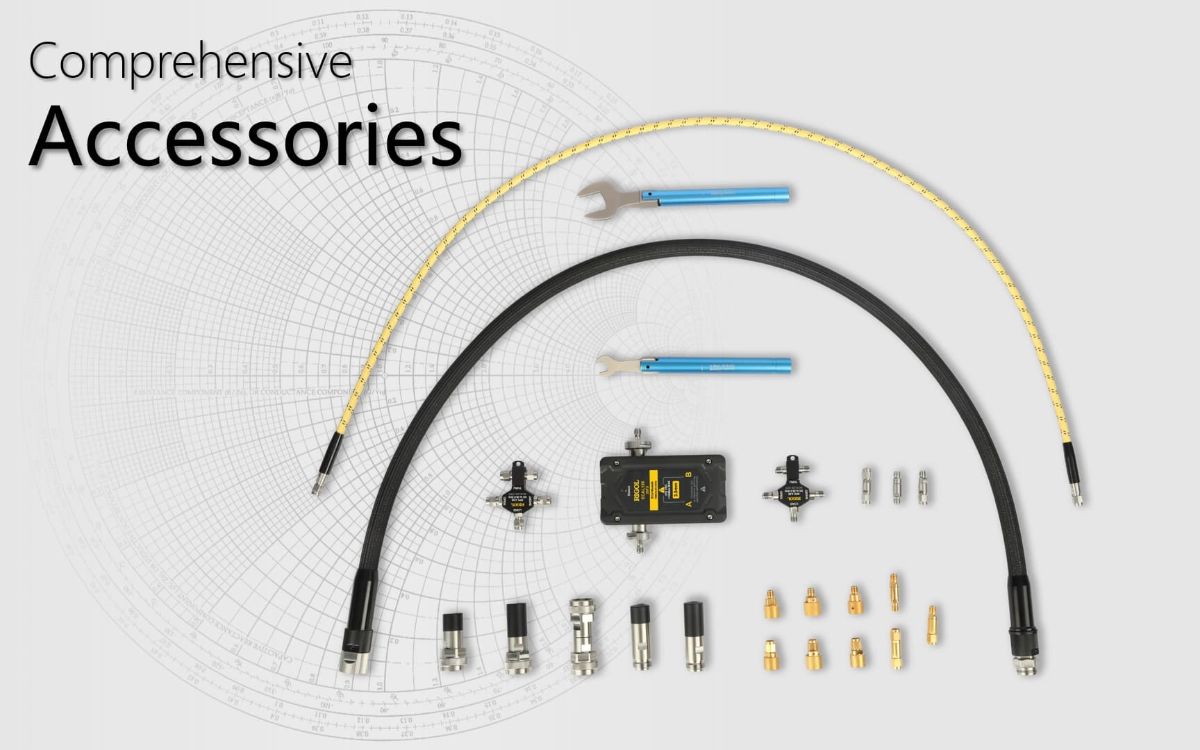

Complete Accessory Support

Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

---

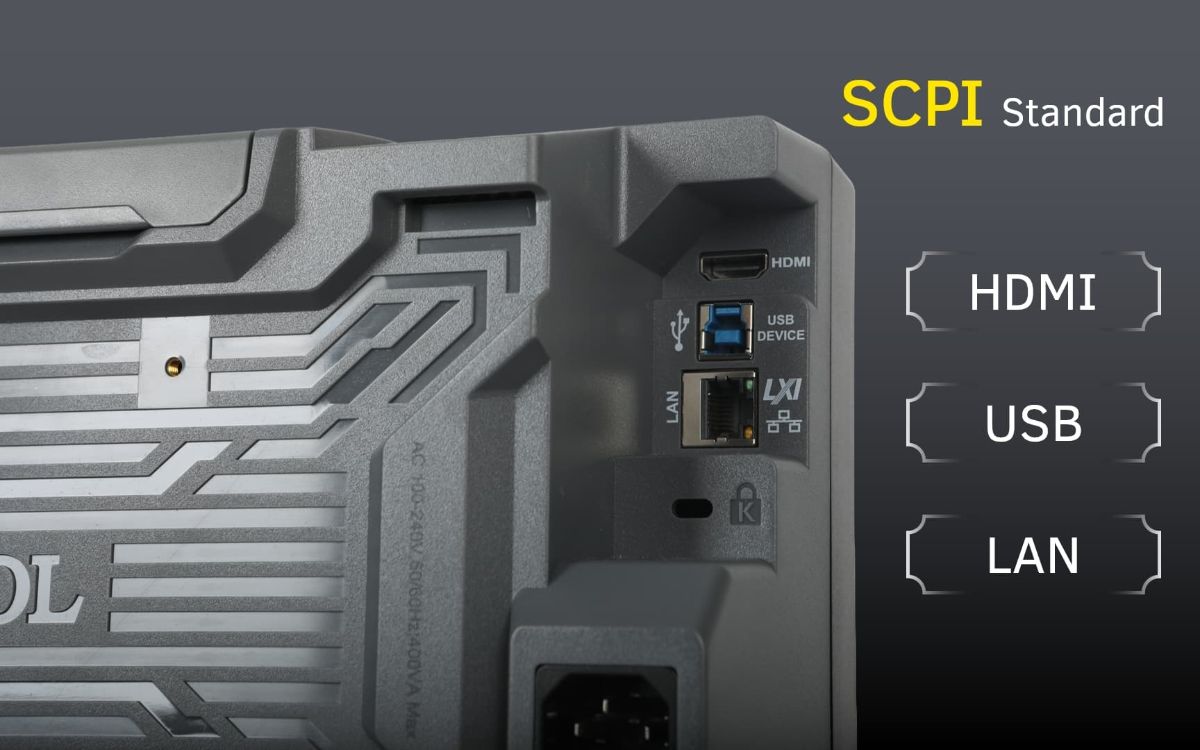

Drop-In Compatibility

Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

---

Model of DNA5000 Series Vector Network Analyzers

DNA5262, DNA5202, DNA5142, DNA5082, DNA5042

>> Datasheet <<
