MSO5000 Series Digital Oscilloscope
MSO5000 series (MSO5072 , MSO5074 , MSO5102 , MSO5104 , MSO5204 , MSO5354) digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
Features
Bode Plot: Switching Power Supply Loop Analysis
The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.
7 in 1 Product Design

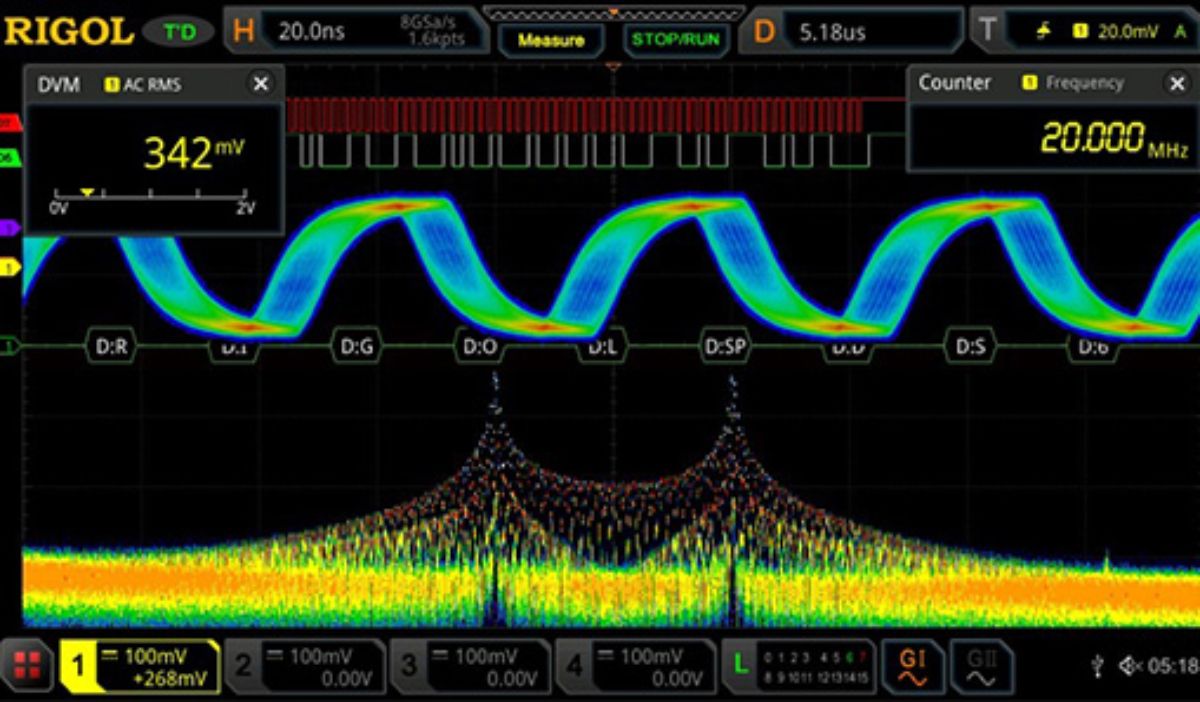

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.
9 “multi Touch Capacitive Screen
9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience
Convenient Web Control Remote Control
The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.
Support Up to 450000 Frames of Hardware Waveform Recording Analysis
The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user’s concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.
Waveform Capture Rate Up to 500000 Times Per Second
With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers
Super High Sampling Bandwidth Ratio
The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.
Full Memory Hardware Measurement
At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges
