DSG5000 Series RF Signal Generators
The frequency range of DSG5000 series (DSG5206, DSG5126, DSG5122, DSG5128, DSG5208, DSG5204, DSG5202, DSG5124) microwave signal generator is 9 kHz to 12 GHz / 20 GHz, and it supports 2-8 independent channel outputs. Its stable phase coherence, excellent low phase noise and good spurious and harmonic suppression ability, Meet the needs of complex tests such as superconducting quantum computing, radar signal generation, MIMO, EMS, etc.
Features

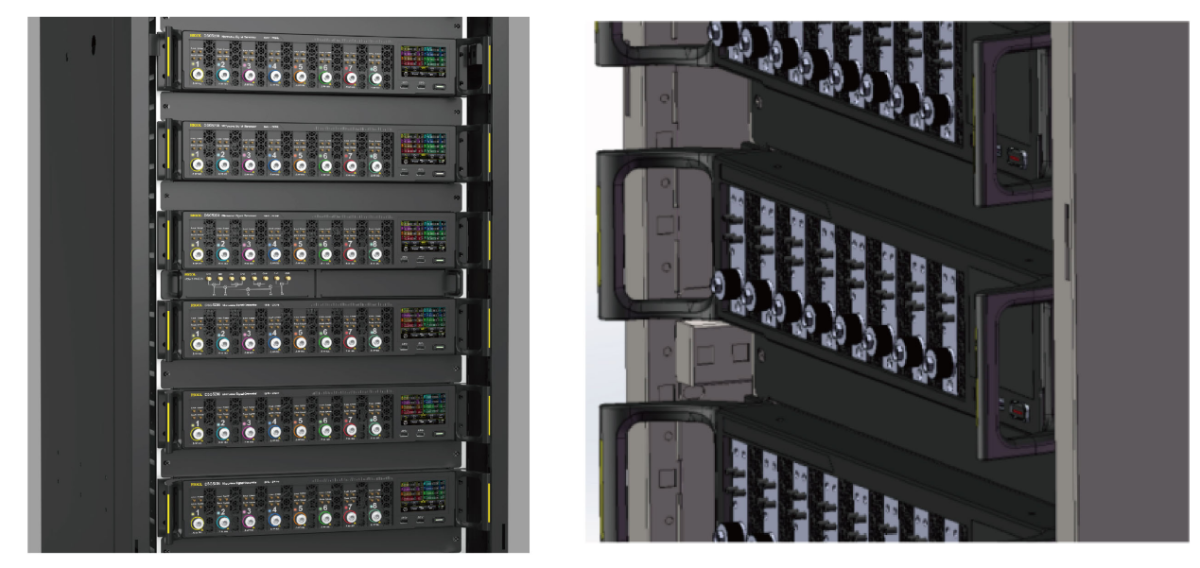

High Density, More Compact
DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.

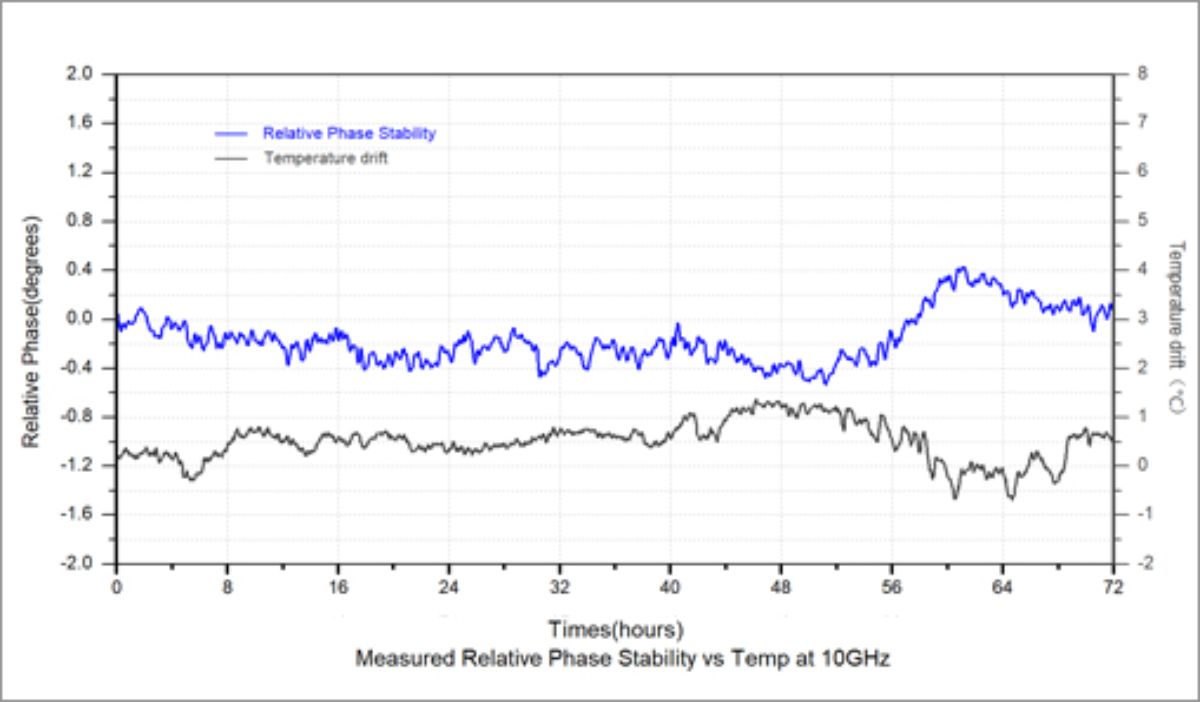

High Performance, More Stable
DSG5000 has excellent inter-channel phase stability, inter-channel phase stability <1°@10GHz, and phase adjustment resolution of 0.01°. The maximum output power is as high as 25dBm, which meets the test requirements of non-linear indicators such as amplifiers.

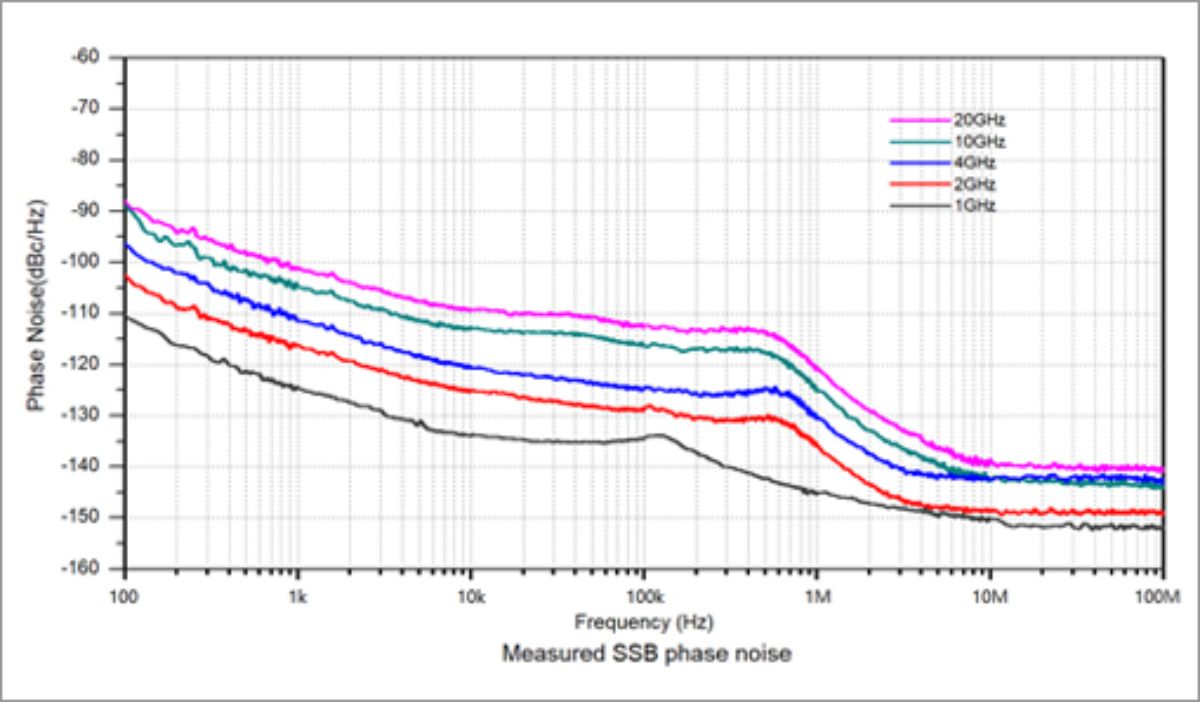

Low Noise, More Pure
The typical value of phase noise is <-133dBc/Hz@1GHz, 10kHz, with high signal purity. After selecting a high-stable clock reference, you can get more outstanding nearby phase noise indicators.

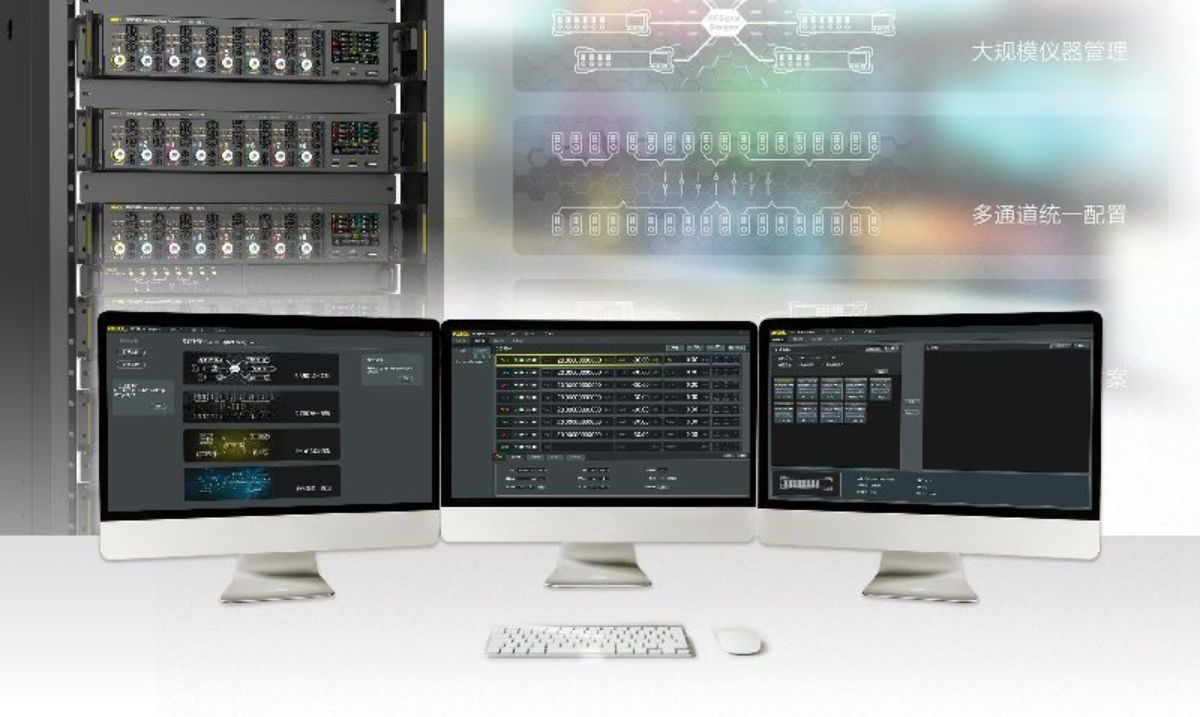

High Scalability, Easier Control
Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.

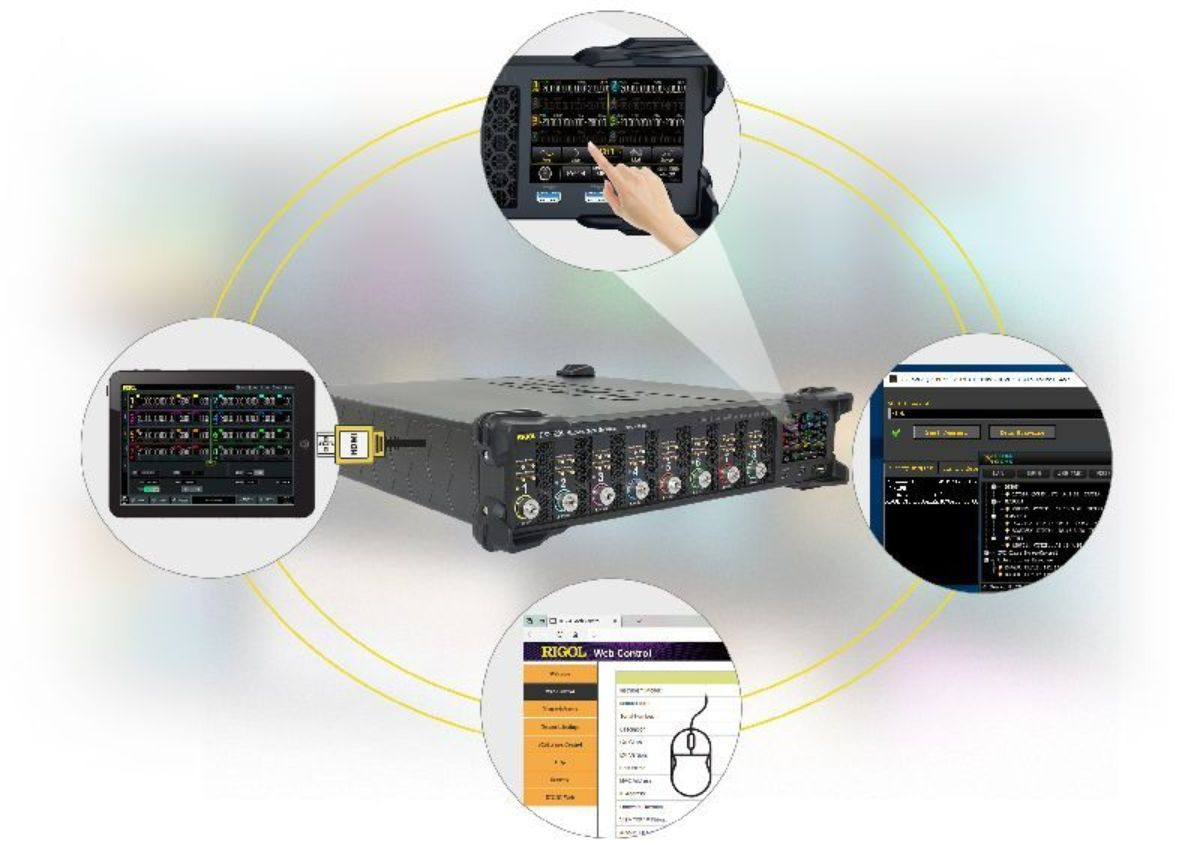

High Usability
The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.
Quantum
Single or multiple qubit manipulation is the basis of complex quantum algorithms. The DSG5000 series multi-channel coherent microwave signal generator provides a stable base for realizing multiple qubit and stable vibration signal by generating multiple coherent and ultra-low phase noise microwave signals. Multiple units can be cascaded to achieve multi-channel coherent output, supporting larger-scale qubit gate operations.
